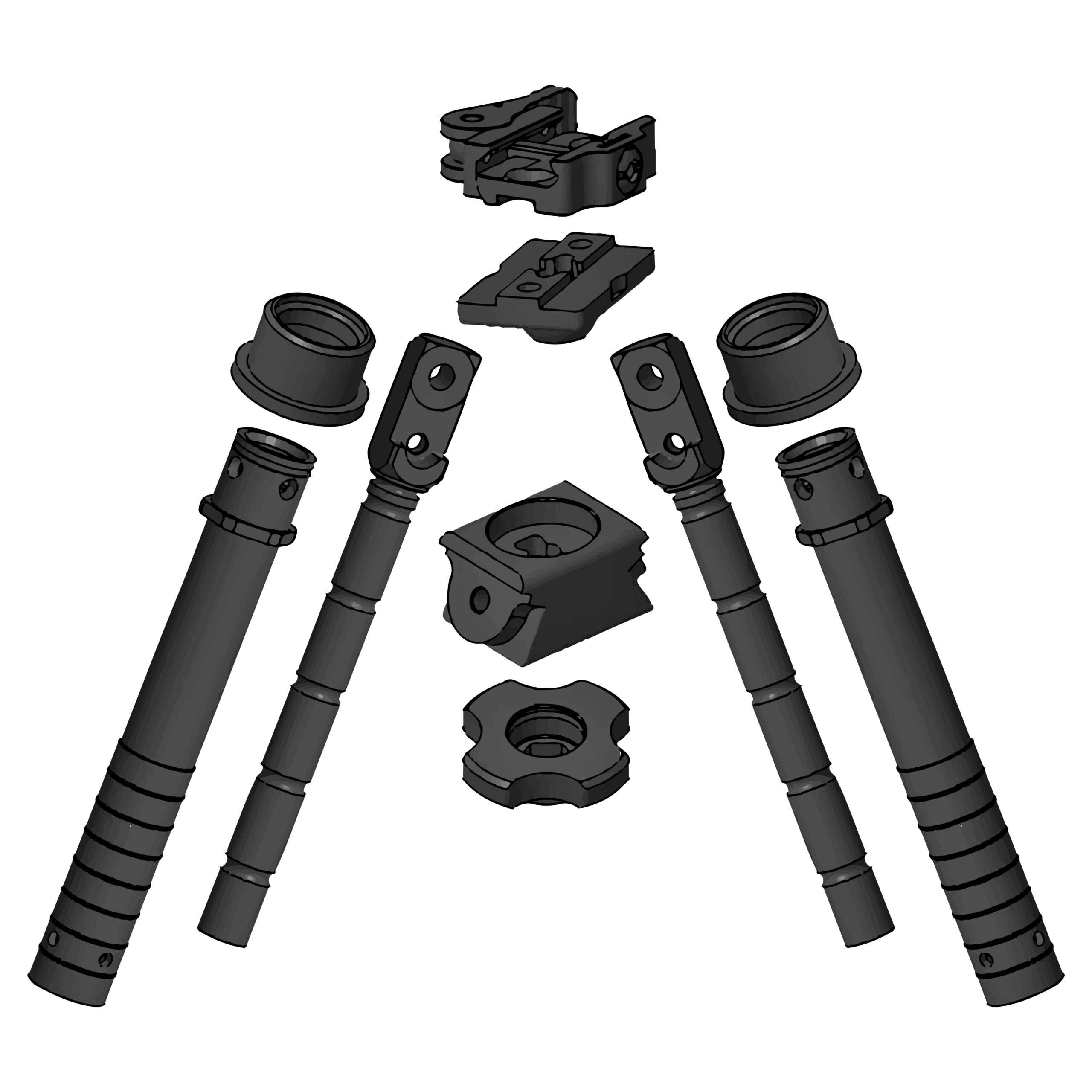

U-BT10-LW17 V8 Atlas Bipod: with Quick Detach Lever – Unassembled

$33495

Ships unassembled for coating. No hardware included.

The BT10-LW17 V8 Atlas Bipod mounts directly to any 1913 style Picatinny rail via the included ADM-170-S lever. It is comprised of 6061-T6 aluminum that is Mil-Spec Type III hard coat anodized and have heat treated stainless steel components.

  • Height Range: 5–9″
  • Preloaded Pan: 30 degrees
  • Preloaded Cant: 30 degrees
  • 5 leg positions: 0, 45, 90, 135 & 180 degrees
  • Weight: 12.7 ounces approx.
  • Footprint: 8–11″

Proudly designed, engineered, machined and assembled in america

Category: Product ID: 1194

Description

Process for anyone wanting to apply an aftermarket finish to a new, unassembled B&T product:

  1. Appropriate parts ship unassembled direct to customer.
  2. Customer confirms proper parts are received and initials Inventory Form.
  3. Coating is completed to customers satisfaction.
  4. Customer returns coated parts and Inventory Form to B&T.
  5. B&T assembles them to specifications for quality assurance.
  6. Completed unit is shipped back to customer.

PLEASE NOTE: It is the customer’s responsibility to notify us within two days of receipt of any missing parts. It is also the customers responsibility to verify coating is to their satisfaction and that ALL parts are returned to B&T for assembly. ALL masking materials/residue must be removed prior to parts being returned. In the event of excess coating on the parts requiring additional reaming, scraping, filing and/or sanding there will be a minimum of $30.00 fee per Bipod/Monopod for such services. B&T will not be held responsible for the appearance of such reamed, scraped, filed and/or sanded parts nor will B&T be responsible for the function of such parts in assembly. By coating our products the customer is assuming ALL risks.

Important Notes for Success of this Procedure:

  1. Parts should be returned within 30 days to ensure compatibility with current production.
  2. Ensure parts are packaged appropriately to avoid any damage in transit. B&T will not be responsible for the finish or any damage to the finish.
  3. We ship the parts with an Inventory Form that shows the appropriate parts and quantities of each. This form should be used by ALL parties to verify ALL parts remain together throughout the process and is returned to B&T with the coated parts.
  4. The Atlas Bipod is manufactured with close tolerances. Any excess finish applied may negatively affect proper assembly and functionality. In this case, the excess finish will be removed to allow proper function. Pay particular attention to the “through holes” found on the Inner and Outer Legs.
  5. We do not sell or ship replacement parts and we do not ship parts to anyone other than the customer that is buying the product(s). B&T will not be held responsible for the aftermarket finish.

More Information

  • LW17Lever Mount With ARMS 17S Mount – Atlas V8 Series Bipod Video Tutorial
  • UHMW components used for smooth tracking
  • Preload on Pan and Cant can be tightened by means of the knurled knob
  • Picatinny Rail Mount interface by either standard machine screw fastener based clamp or optional ARMS 17S lever mount
  • Independent, intentional and non-orientated leg positioning allows either hand to move leg into any of the five leg positions
  • Solid leg positions allows shooter to load the bipod at the 45 and 90 degree positions.
  • Non-orientated leg length adjustment done by either hand: Outer leg slides on the Inner leg locating on any of the five positions ¾” apart
  • Standard soft, durable rubber feet that are suitable for many surfaces included
  • Optional 3” Leg Extensions to increase height
  • Optional interchangeable Ski Feet and Raider Cleat Feet easily swapped in the field with the press of a stainless steel plunger
  • Optional mounting systems available for Accuracy International and Sako rifles
ADM-170-S Lever Adjustment & Operation
