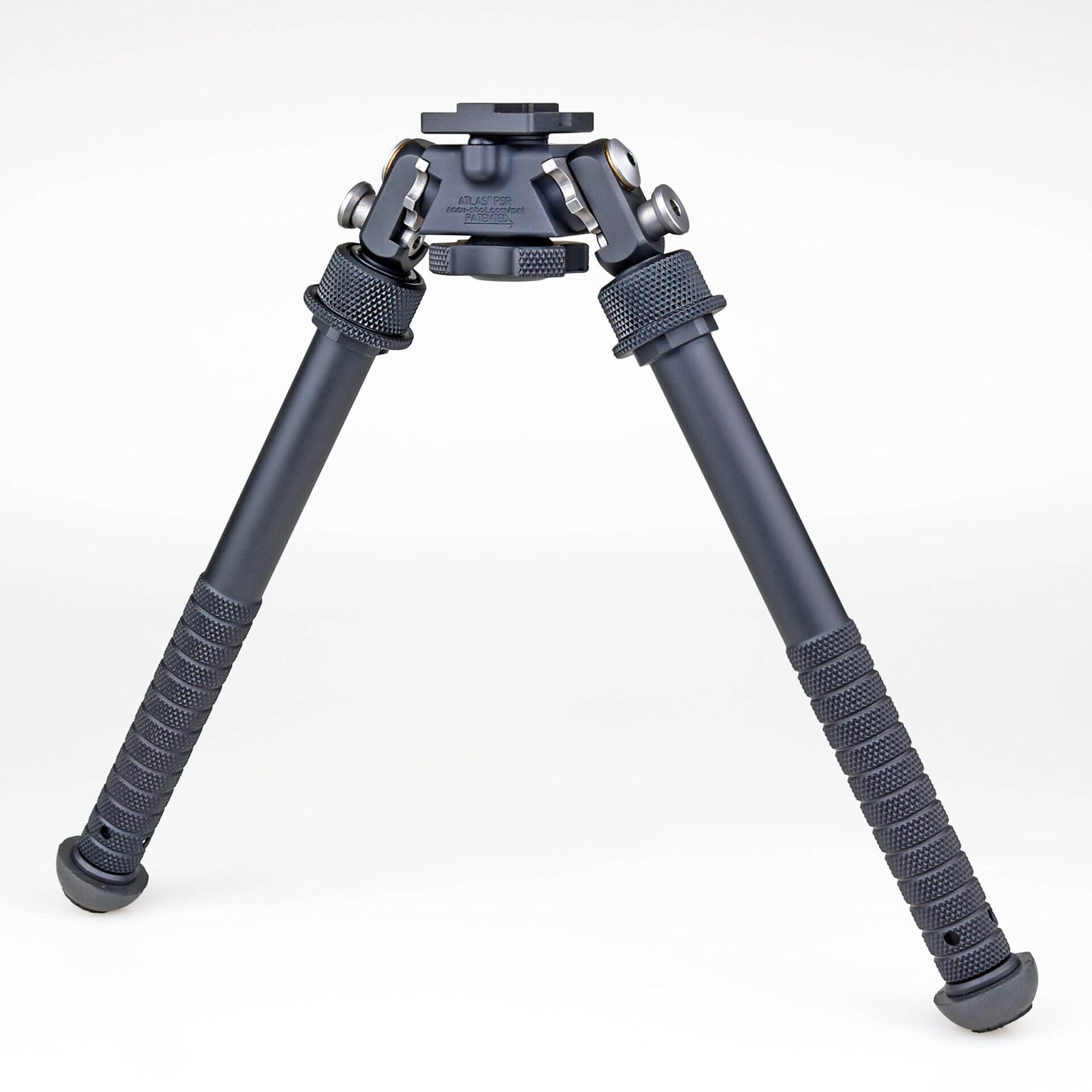

Description

The BT47-NC is comprised of 6061-T6 aluminum, except the strengthened inner legs which are made from 7075-T6 aluminum that are Mil-Spec Type III hard coat anodized and have heat treated, stainless steel components. Includes two 10-32 x 3/8″ flathead socket screws. Available in black only.

• Height Range: 6.2 – 12.5″ (8.3” at 90°)
• Preloaded Pan: 30 degrees
• Preloaded Cant: 30 degrees
• Position Button 0.5″ diameter
• Fore and Aft pivot limiting Bosses
• 5 leg positions: 0, 45, 90, 135 & 180 degrees
• Non-Rotating Legs: outer leg does not rotate around inner leg
• Larger, stronger inner legs
• Weight: 12.86 ounces approx.
• Footprint: 10-14.5″

Applying a New Finish

More Information, Tutorial & Accessories

• NC: No Clamp – Atlas® PSR Series Bipod Video Tutorial
• UHMW components used for smooth tracking
• Preload on Pan and Cant can be tightened by means of the knurled knob
• Picatinny Rail Mount interface by either standard machine screw fastener based clamp or optional ARMS 17S lever mount
• Independent, intentional and non-orientated leg positioning allows either hand to move leg into any of the five leg positions
• Solid leg positions allows shooter to load the bipod at the 45 and 90 degree positions.
• Non-orientated leg length adjustment done by either hand: Outer leg slides on the Inner leg locating on any of the seven positions ¾” apart
• Includes our Standard Rubber Feet durable and suitable for many surfaces
• Optional Leg Extensions and Adjustable Leg Extensions to increase height
• Optional interchangeable Ski Feet and Raider Cleat Feet easily swapped in the field with the press of a stainless steel plunger
• Optional mounting systems available for Accuracy International and Sako rifles
