Description

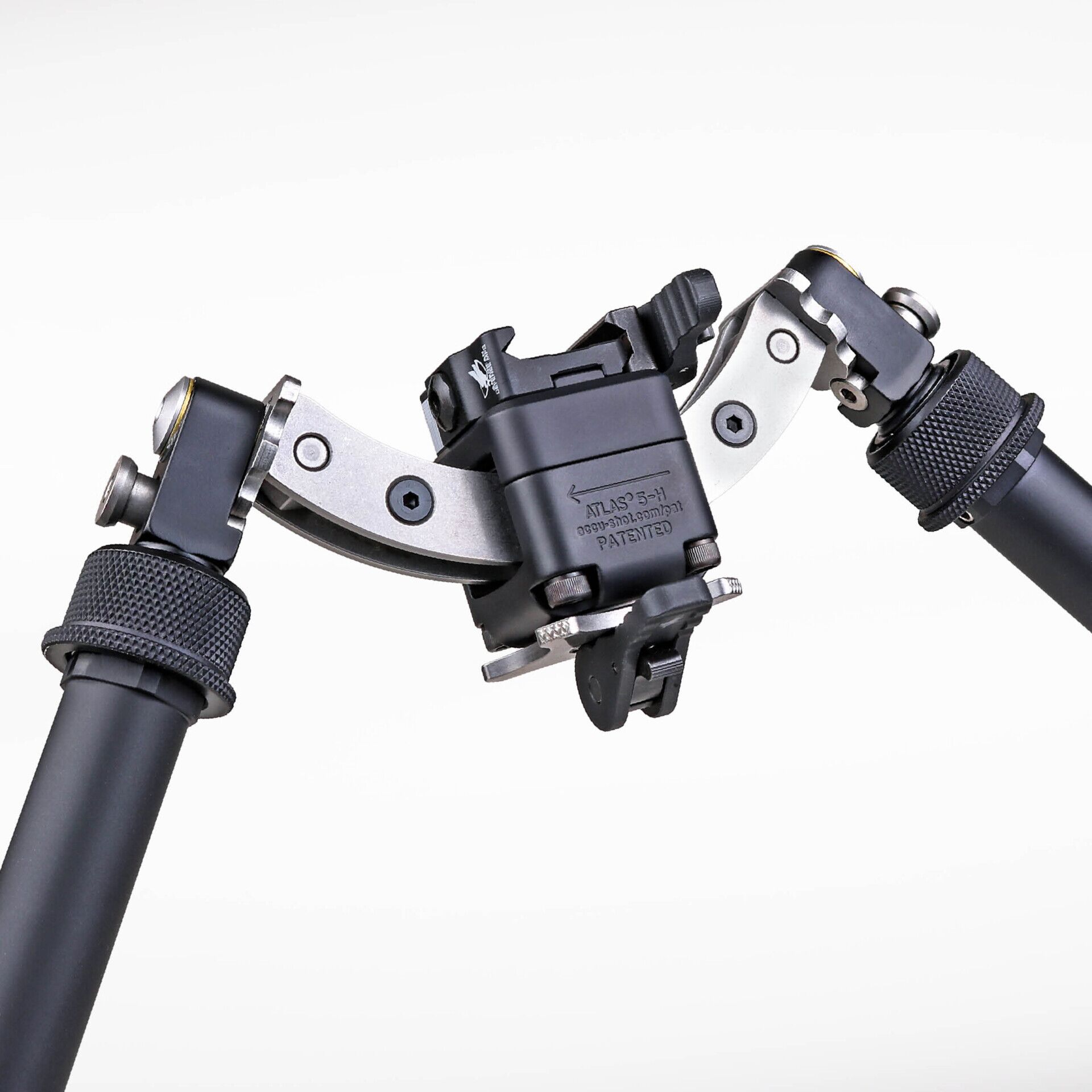

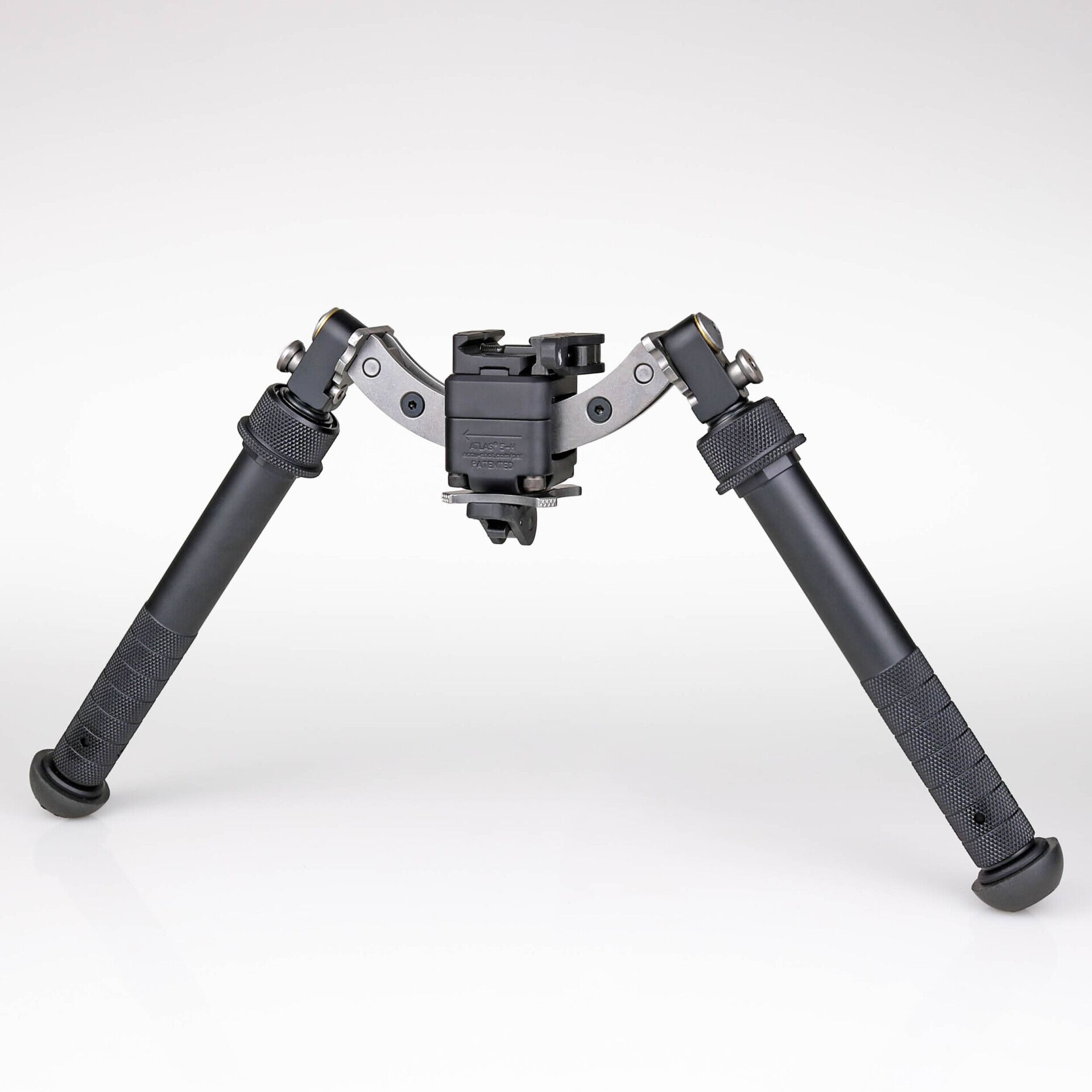

The BT35-LW17 is comprised of 6061-T6 aluminum that is Mil-Spec Type III hard coat anodized with heat treated, stainless steel components. Available in black only.

• Height Range: 5 – 10.2″ (6.9” at 90°)
• Pan: 30 degrees
• Cant: 30 degrees
• Pan and Cant can be locked out at top dead center
• Pan and Cant Tension Wheel has Detent adjustability and Cam-Lock
• Position Button 0.5″ diameter

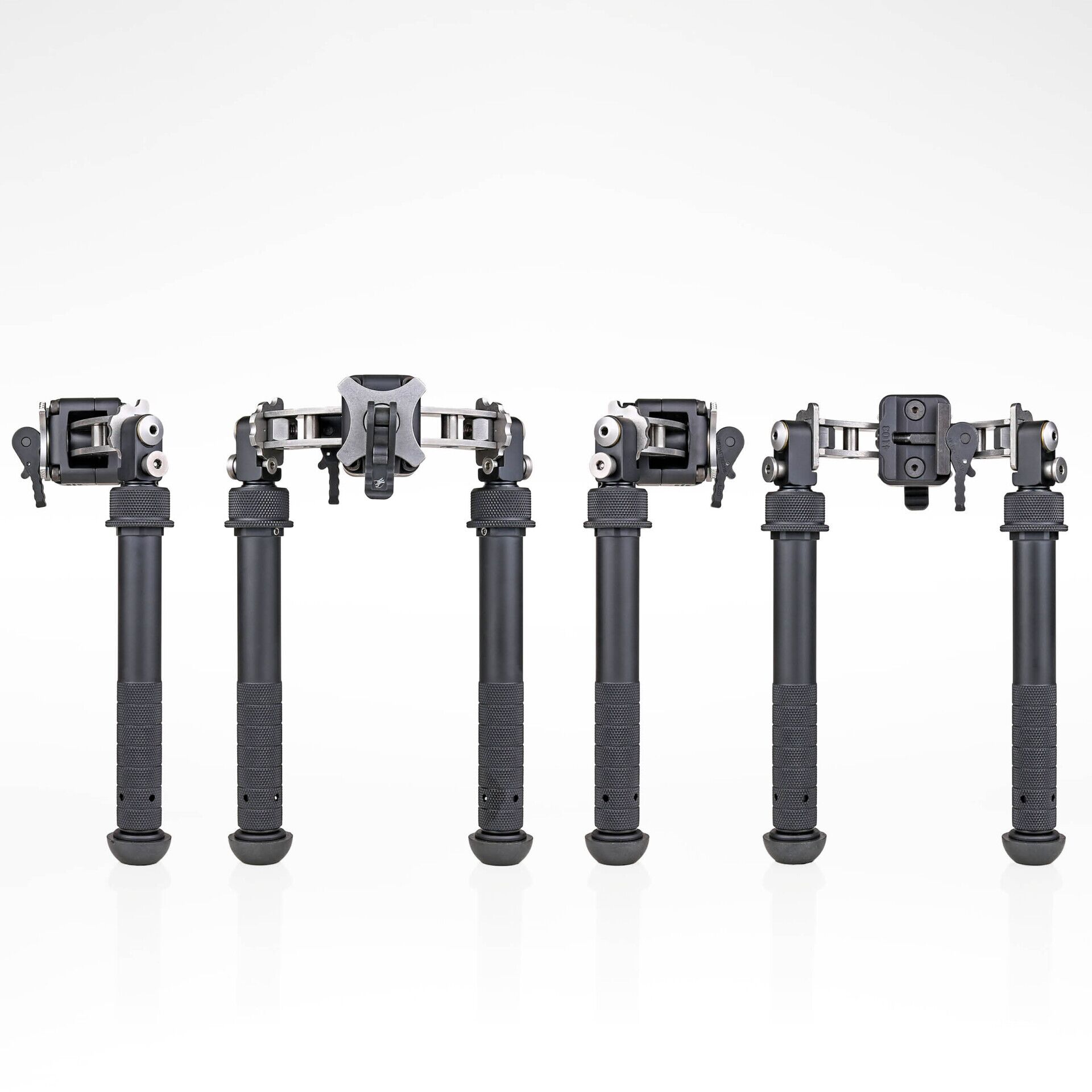

• 5 leg positions: 0, 45, 90, 135 & 180 degrees
• Non-Rotating Legs: outer leg does not rotate around inner leg
• Weight: 27.52 ounces approx.
• Footprint: 14.5–19.5″

Applying a New Finish

ADM Lever Adjustment & Operation

• Video: How to Adjust the ADM Quick Detach Lever on the Atlas® Bipod

• Download and Print Operating Instructions for the ADM Quick Detach Lever

More Information, Tutorial & Accessories

• LW17: Lever Mount With ARMS 17S Mount – Atlas® 5-H Series Bipod Video Tutorial
• Picatinny Rail Lever Mount interface with American Defense MFG ADM-5-H installed
• Independent, intentional and non-orientated leg positioning allows either hand to move leg into any of the five leg positions
• Solid leg positions allows shooter to load the bipod at the 45 and 90 degree positions.

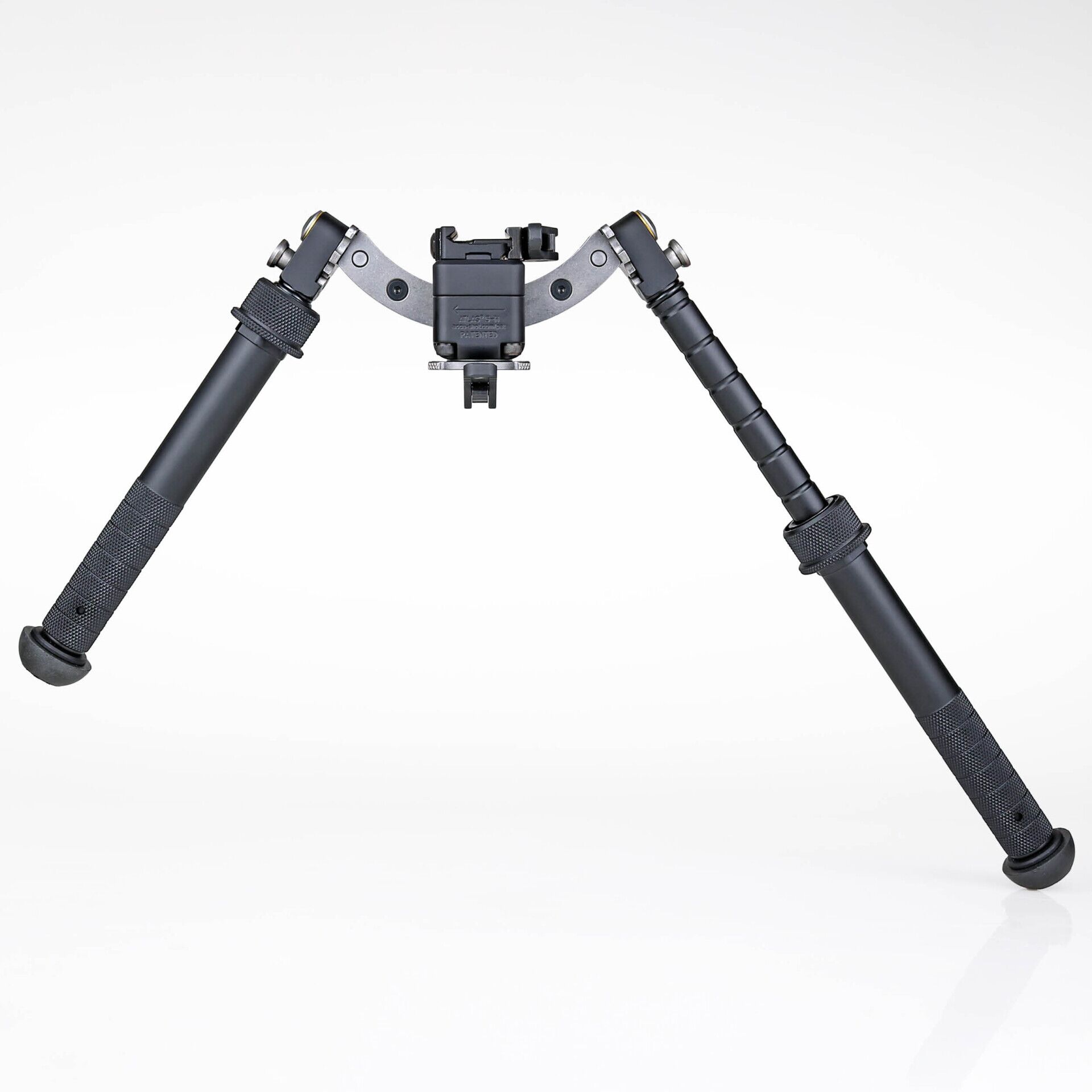

• Non-orientated leg length adjustment done by either hand: Outer leg slides on the Inner leg locating on any of the five positions ¾” apart
• Includes 5-H size Standard Rubber Feet durable and suitable for many surfaces
• Optional quick-change Ski Feet and Raider Cleat easily swapped in the field with the press of a stainless steel plunger
• Optional mounting systems available for Accuracy International and Sako rifles
