Description

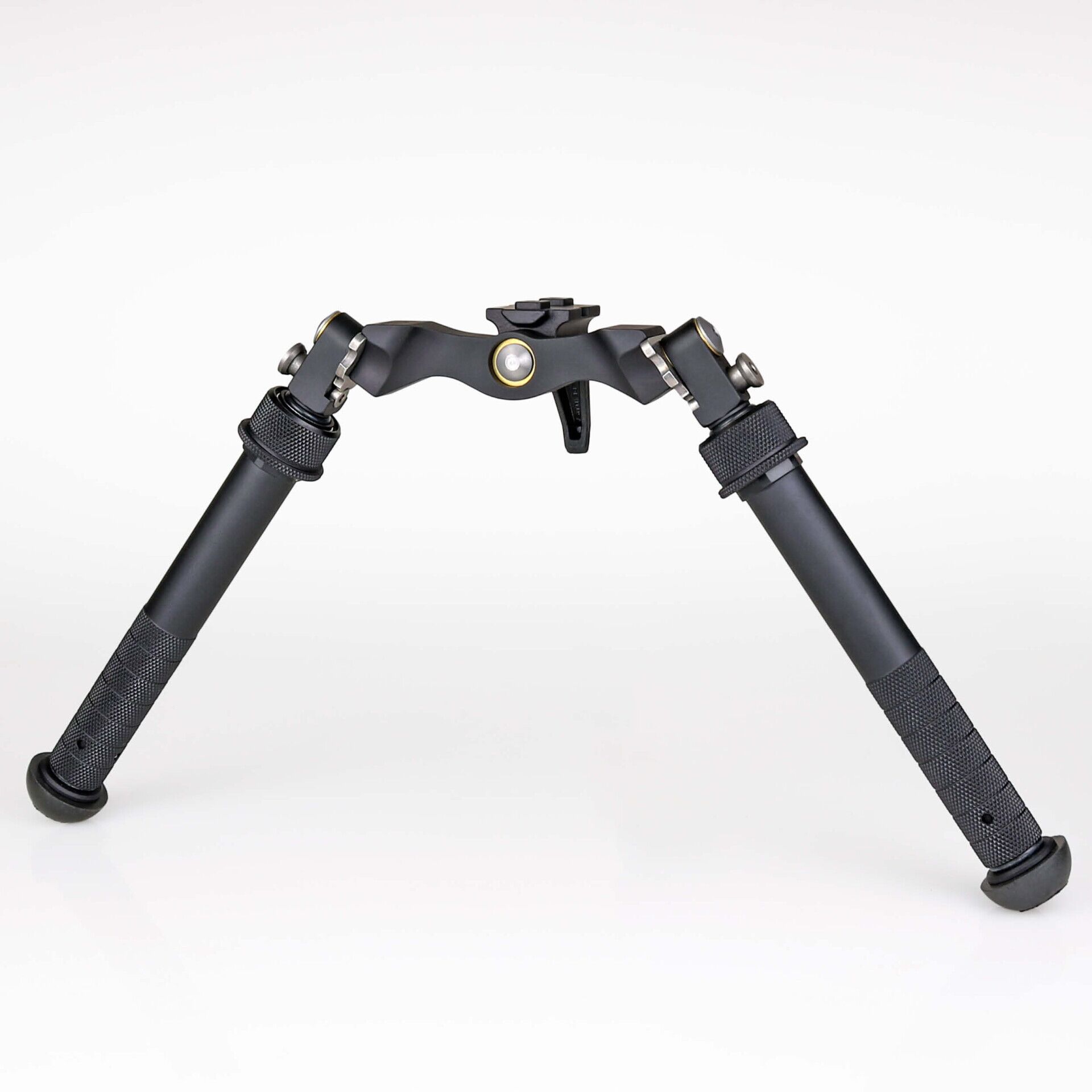

The BT72-NC is comprised of 6061-T6 aluminum that is Mil-Spec Type III hard coat anodized with heat treated stainless steel components. Includes two 10-32 x 3/8″ flathead socket screws. Available in black only.

• Height Range: 5.6 – 10.8” (7.4” at 90°)
• Preloaded Cant: 63 degrees
• Position Button: 0.5″ diameter
• 5 leg positions: 0, 45, 90, 135 & 180 degrees
• Non-Rotating Legs: outer leg does not rotate around inner leg
• Weight: 21.2 ounces
• Footprint: 14.75-19.37″

* It is NOT compatible with the Magpul^® QR Rail Grabber (MAG1196). Limited compatibility with Really Right Stuff’s SC-ARC Bipod Clamp due to function interference.

COMPATIBLE CLAMPS WE OFFER:

• American Defense MFG ADM-170-S Picatinny Mount
• American Defense MFG QD ARCA Mount
• Area 419 ARCALOCK Clamp
• Area 419 ARCALOCK QD Clamp
• Area 419 ARCALOCK Dual-Clamp with Picatinny
• Arisaka Picatinny Rail Slider
• Really Right Stuff BTC-Pro Dual Arca/Pic Clamp

USING THE KMW “POD-LOC^®”

With the Super CAL bipod mounted to your rifle, you will be able to lock and un-lock the canting motion by rotating the Pod-Loc^® lever. Turn clockwise to lock and counter clockwise to un-lock. The Pod-Loc^® lever position can be adjusted for positioning by pulling the lever directly away from the body of the Super CAL and rotating to desired position. This positioning can be repeated until optimal position is achieved.

MORE INFORMATION & ACCESSORIES

• NC: No Clamp – No Clamp interface requires 17S size mount or adapter with matching two hole pattern of 1.100” with 10/32 threads
• Recommended torque specification for installation of any mount/adapter: up to 30 inch pounds
• Preload on Cant can be adjusted by removing Pod-Loc and tightening/loosening the exposed nut by 1/8-1/4 turns until desired tension achieved
• Independent, intentional and non-orientated leg positioning allows either hand to move leg into any of the five leg positions
• Solid leg positions allows shooter to load the bipod at the 45 and 90 degree positions.
• Non-orientated leg length adjustment done by either hand: Outer leg slides on the Inner leg locating on any of the seven positions ¾” apart
• Hold What You Move Technology^®
• Includes Super CAL size Standard Rubber Feet durable and suitable for many surfaces
• Optional quick-change Ski Feet and Raider Cleat easily swapped in the field with the press of a stainless steel plunger
• Optional mounting systems available for Accuracy International and Sako rifles
