Since B&T Industries introduced the Atlas Bipod in 2006, the shooting community found a usefulness in its patented, novel features. We began receiving requests for a “bigger,” “heavier,” “stouter” bipod with the same features.

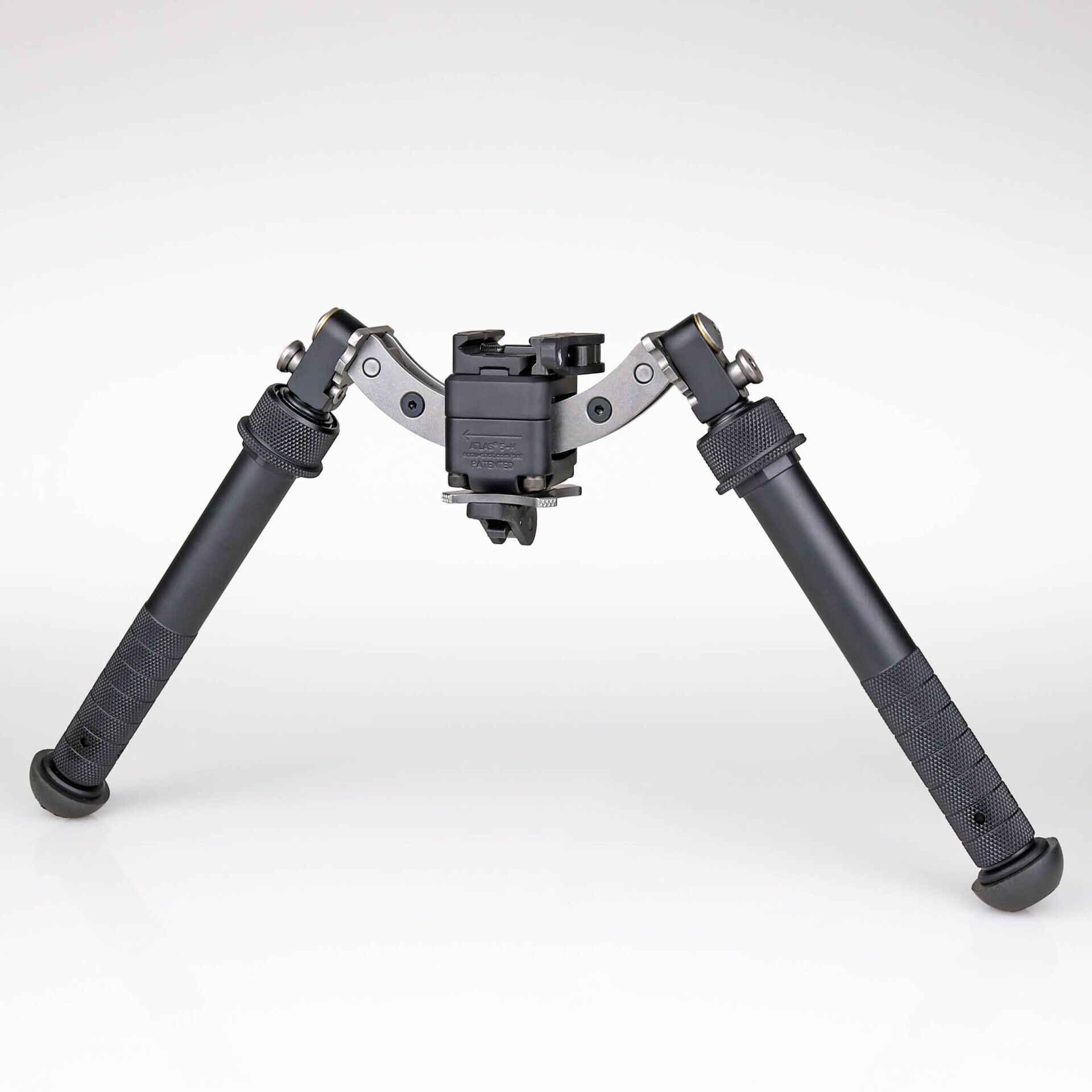

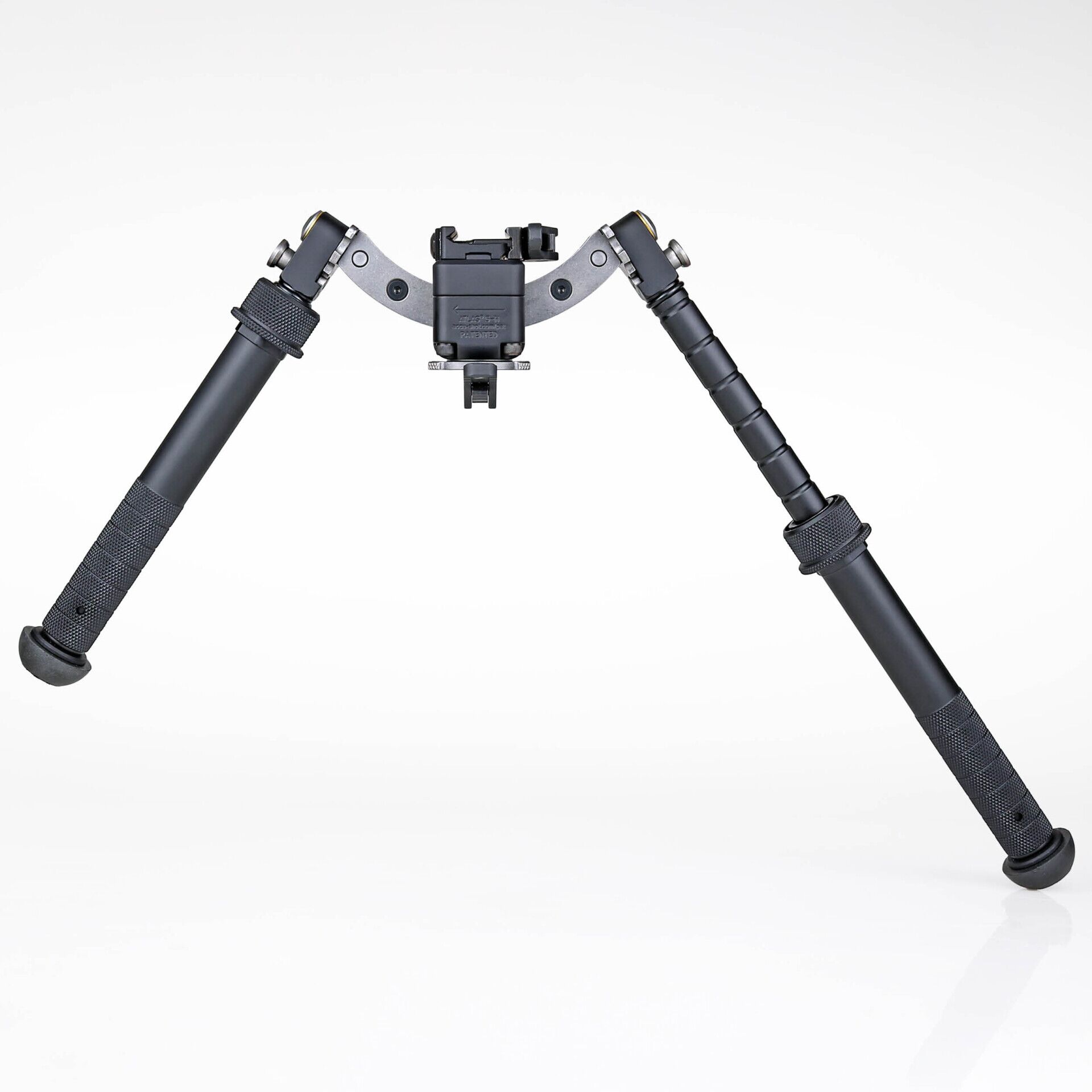

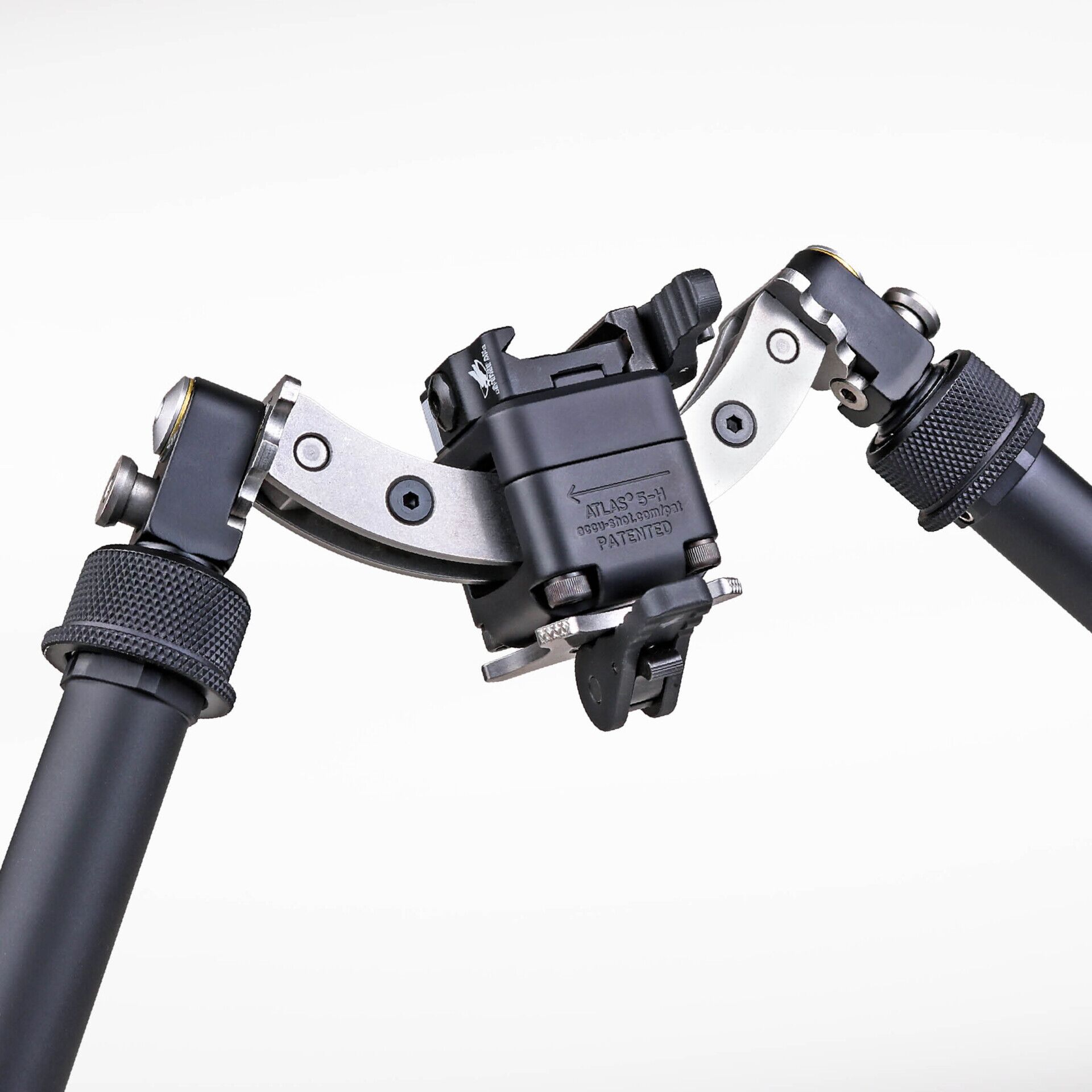

The BT35-LW17 5-H Atlas Bipod mounts directly to any 1913 style Picatinny rail via the included ADM-5-H Lever. It is comprised of 6061-T6 aluminum that is Mil-Spec Type III hard coat anodized and have heat treated, stainless steel components. Available in black only.

NSN 1005-01-708-8193

• Height Range: 5 – 10.2″ (6.9” at 90°)
• Pan: 30 degrees
• Cant: 30 degrees
• Pan and Cant can be locked out at top dead center
• Pan and Cant Tension Wheel has Detent adjustability and Cam-Lock
• Position Button 0.5″ diameter

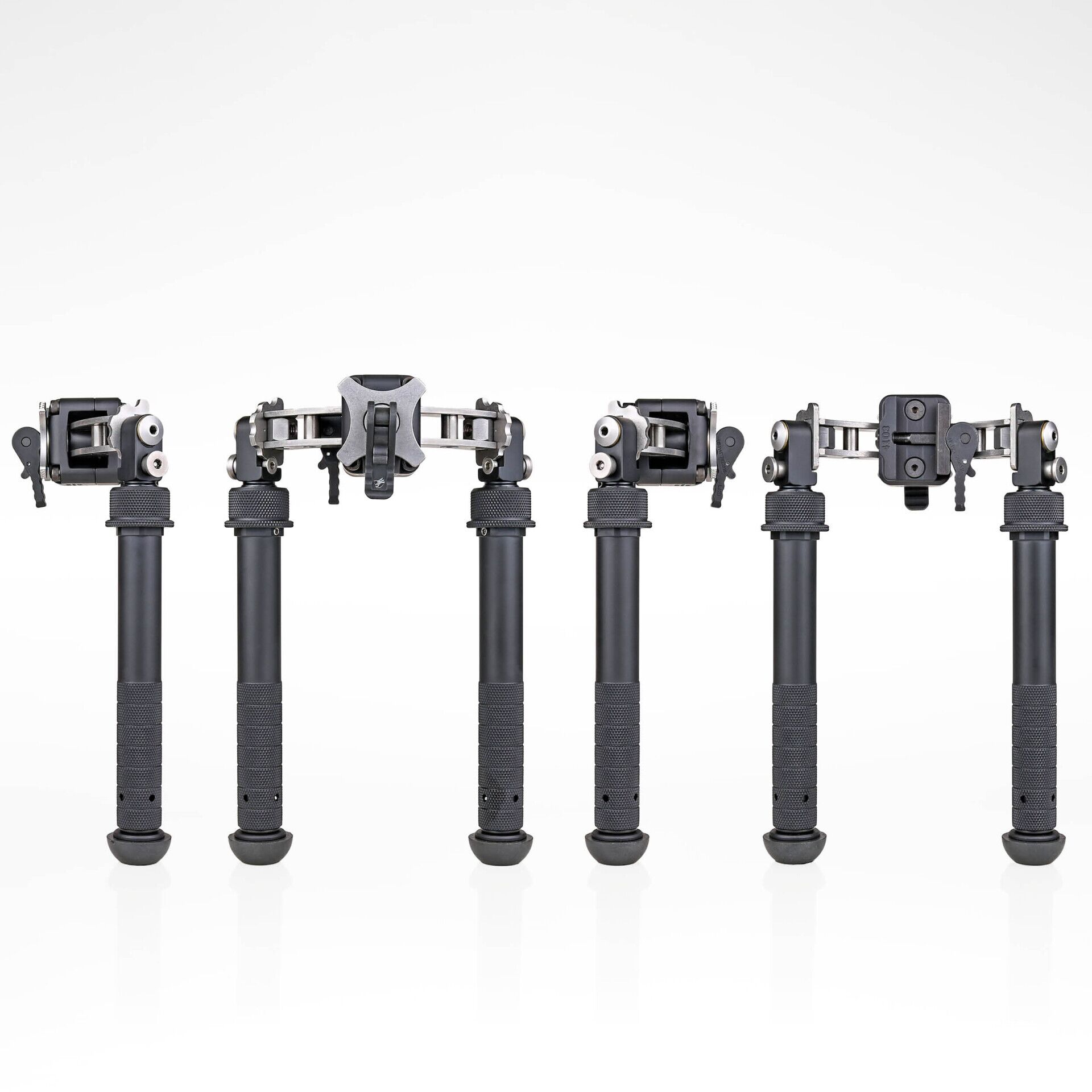

• 5 leg positions: 0, 45, 90, 135 & 180 degrees
• Non-Rotating Legs: outer leg does not rotate around inner leg
• Weight: 27.52 ounces approx.
• Footprint: 14.5–19.5″
