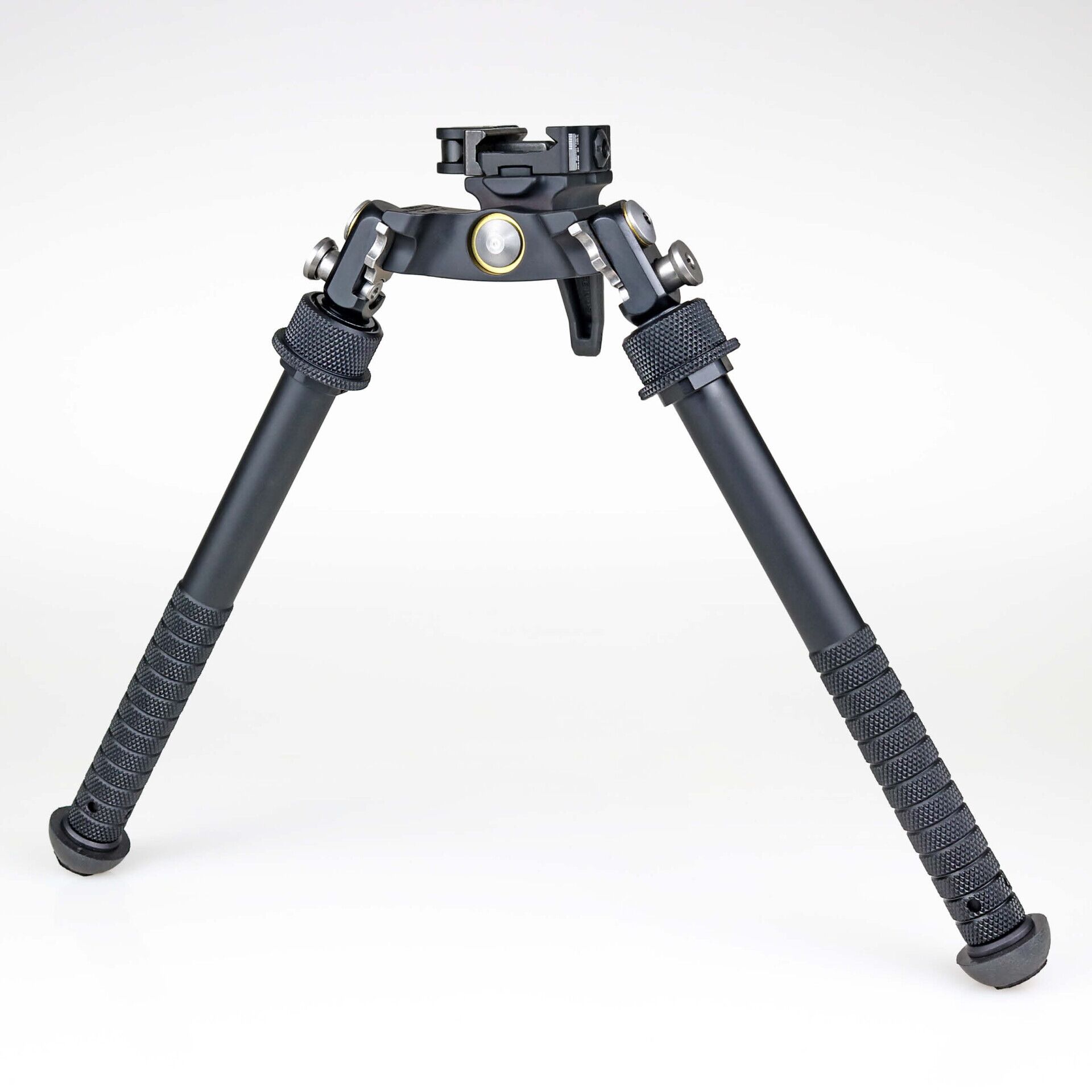

BT69-LW17 Gen. 2 CAL Atlas® Bipod: Tall with ADM-170-S Lever

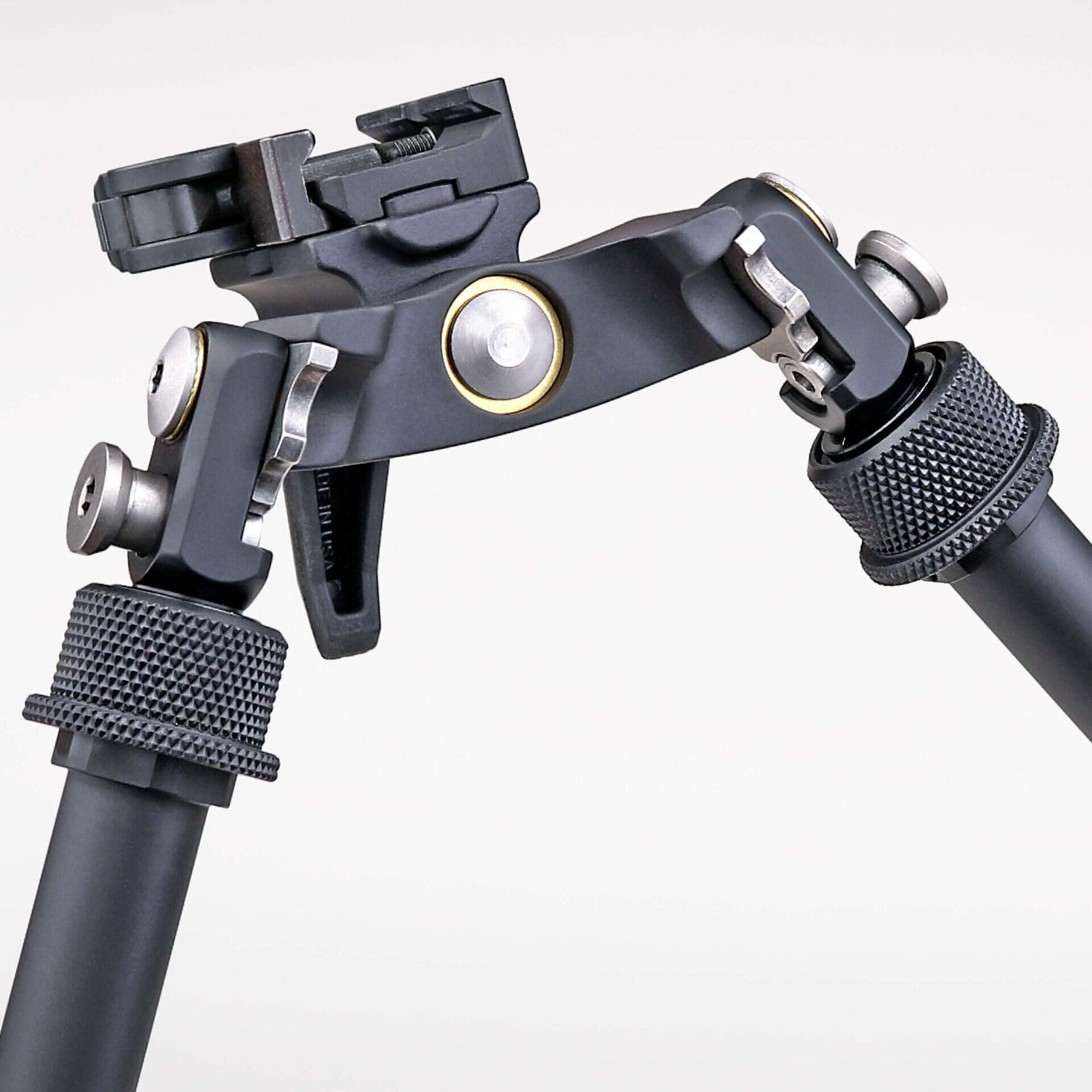

BT69-LW17 Gen. 2 CAL Atlas® Bipod: Tall with ADM-170-S Lever - Image 2

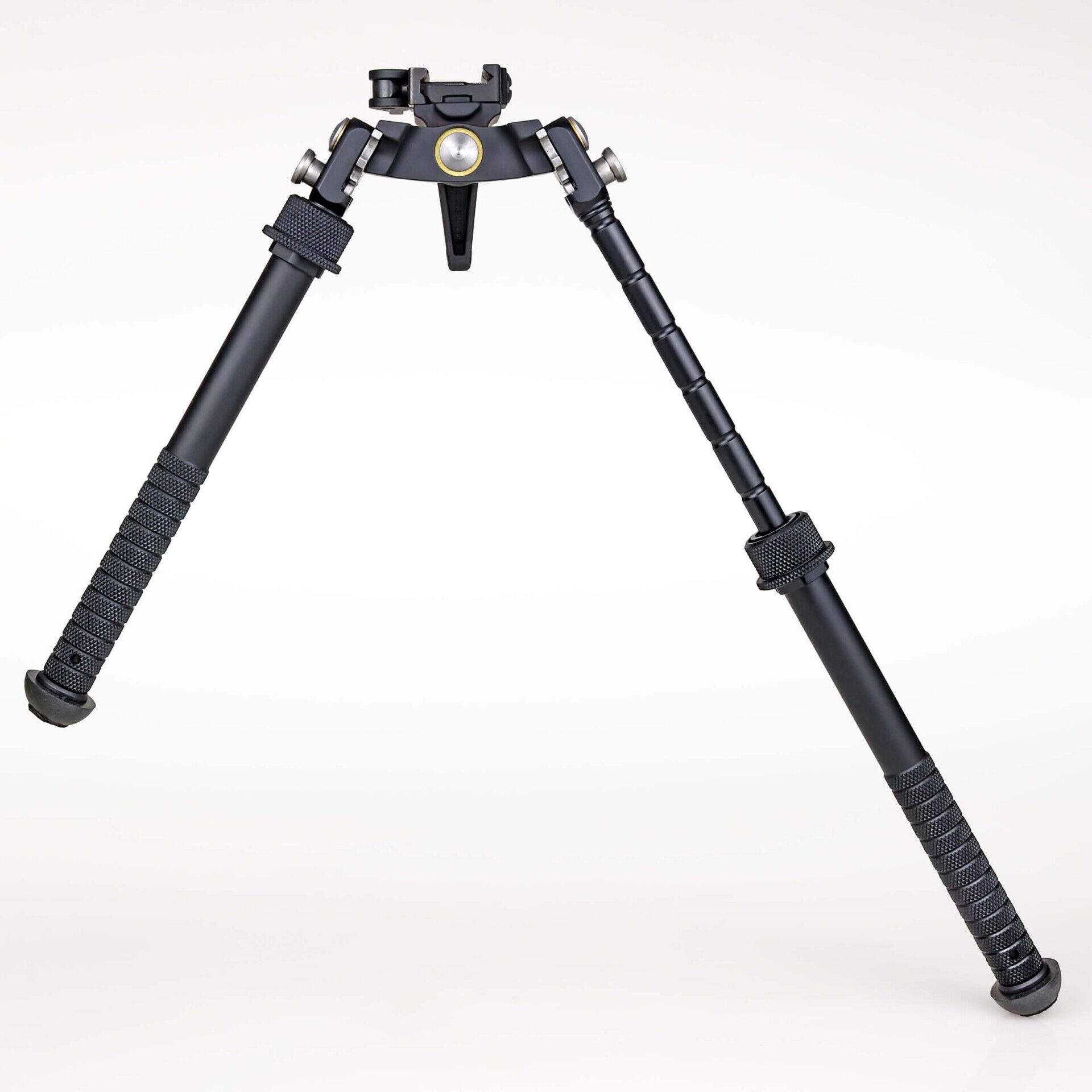

BT69-LW17 Gen. 2 CAL Atlas® Bipod: Tall with ADM-170-S Lever - Image 3

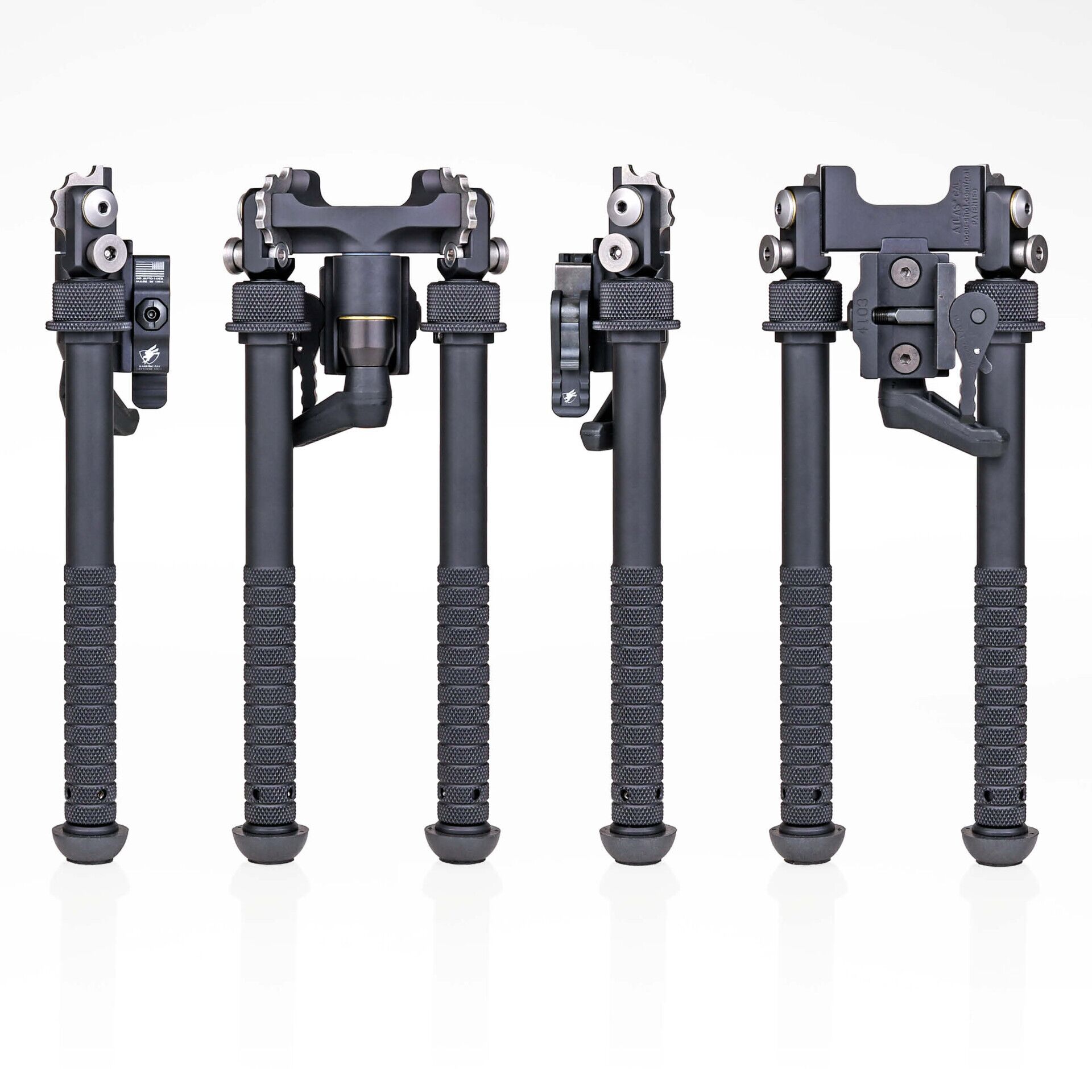

BT69-LW17 Gen. 2 CAL Atlas® Bipod: Tall with ADM-170-S Lever - Image 4

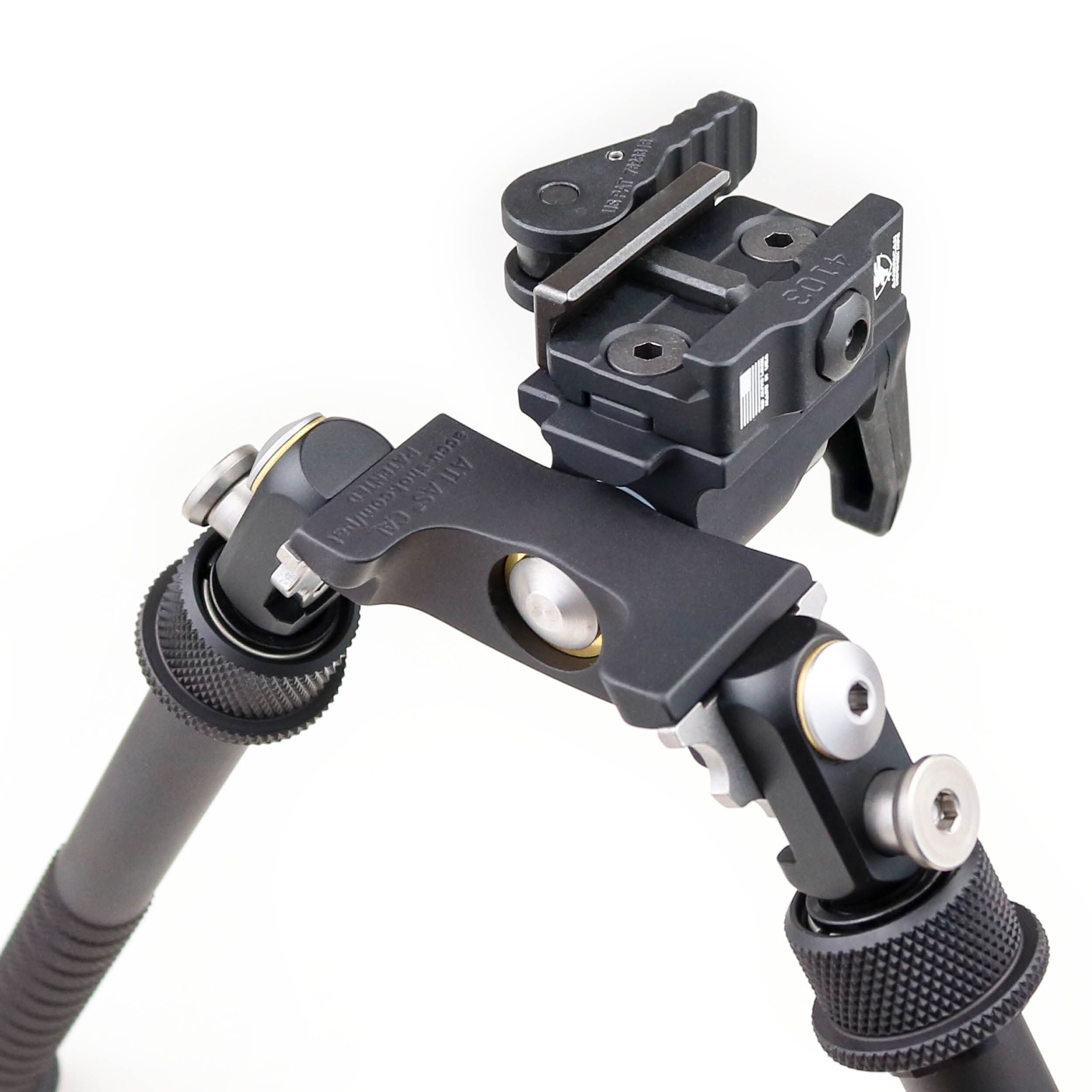

Bt69 Lw17 Stock Images5

BT69-LW17 Gen. 2 CAL Atlas® Bipod: Tall with ADM-170-S Lever

$35495

About the CAL Series: Fulfilling requests for an Atlas without the ability to Cant prompted creation of the CAL (Cant And Loc) Atlas® Bipod. It delivers the same novel Atlas feature of five independent leg positions – including the patented 45° leg position – but without the Pan function to ensure the bore stays perpendicular to the bipod legs. Features 63º of adjustable, preloaded Cant and a wide footprint. Made in the USA.

The BT69-NC model Atlas Bipod is part of our Tall CAL Series. It mounts directly to any Picatinny rail using the included ADM-170-S lever mount. This mount allows for quick attachment to and detachment from firearms with Picatinny Rail, and is adjustable to fit the width of in spec and out of spec Picatinny Rails without the use of tools.

Adjustable, preloaded Cant with additional tension lever made possible using original KMW Pod-Loc® (instructions below).

In stock

Categories: , Product ID: 1311

Description

The BT69-LW17 is comprised of 6061-T6 aluminum, except the inner legs which are made from 7075-T6 aluminum, Mil-Spec Type III hard coat anodized with heat treated stainless steel components. Available in black only.

  • Height Range: 6.3 – 12.5” (8.3” at 90°)
  • Preloaded Cant: 63 degrees
  • Position Button 0.5″ diameter
  • 5 leg positions: 0, 45, 90, 135 & 180°
  • Non-Rotating Legs: outer leg does not rotate around inner leg
  • Larger, stronger inner legs
  • Weight: 16.3 ounces
  • Footprint: 9.25-16.5”

Applying a New Finish

ADM-170-S Lever Adjustment & Operation
Using the KMW “Pod-Loc®”

With the CAL bipod mounted to your rifle, you will be able to lock and un-lock the canting motion by rotating the Pod-Loc® lever. Turn clockwise to lock and counter clockwise to un-lock. The Pod-Loc® lever position can be adjusted for positioning by pulling the lever directly away from the body of the CAL and rotating to desired position. This positioning can be repeated until optimal position is achieved.

More Information & Accessories
  • LW17: Lever Mount With ARMS 17S – Lever Picatinny Rail Lever Mount interface with American Defense MFG ADM-170-S Picatinny Rail Lever Mount installed
  • Preload on Cant can be adjusted by removing Pod-Loc and tightening the exposed nut by 1/8-1/4 turns until desired tension achieved
  • Independent, intentional and non-orientated leg positioning allows either hand to move leg into any of the five leg positions
  • Solid leg positions allows shooter to load the bipod at the 45 and 90 degree positions.
  • Non-orientated leg length adjustment done by either hand: Outer leg slides on the Inner leg locating on any of the five positions ¾” apart
  • Hold What You Move Technology®
  • Includes Standard Rubber Feet durable and suitable for many surfaces
  • Optional Leg Extensions and Adjustable Leg Extensions to increase height
  • Optional quick-change Ski Feet and Raider Cleat Feet easily swapped in the field with the press of a stainless steel plunger
  • Optional mounting systems available for Accuracy International and Sako rifles

Proudly designed, engineered, machined and assembled in america

Additional information

Weight 16.3 oz
