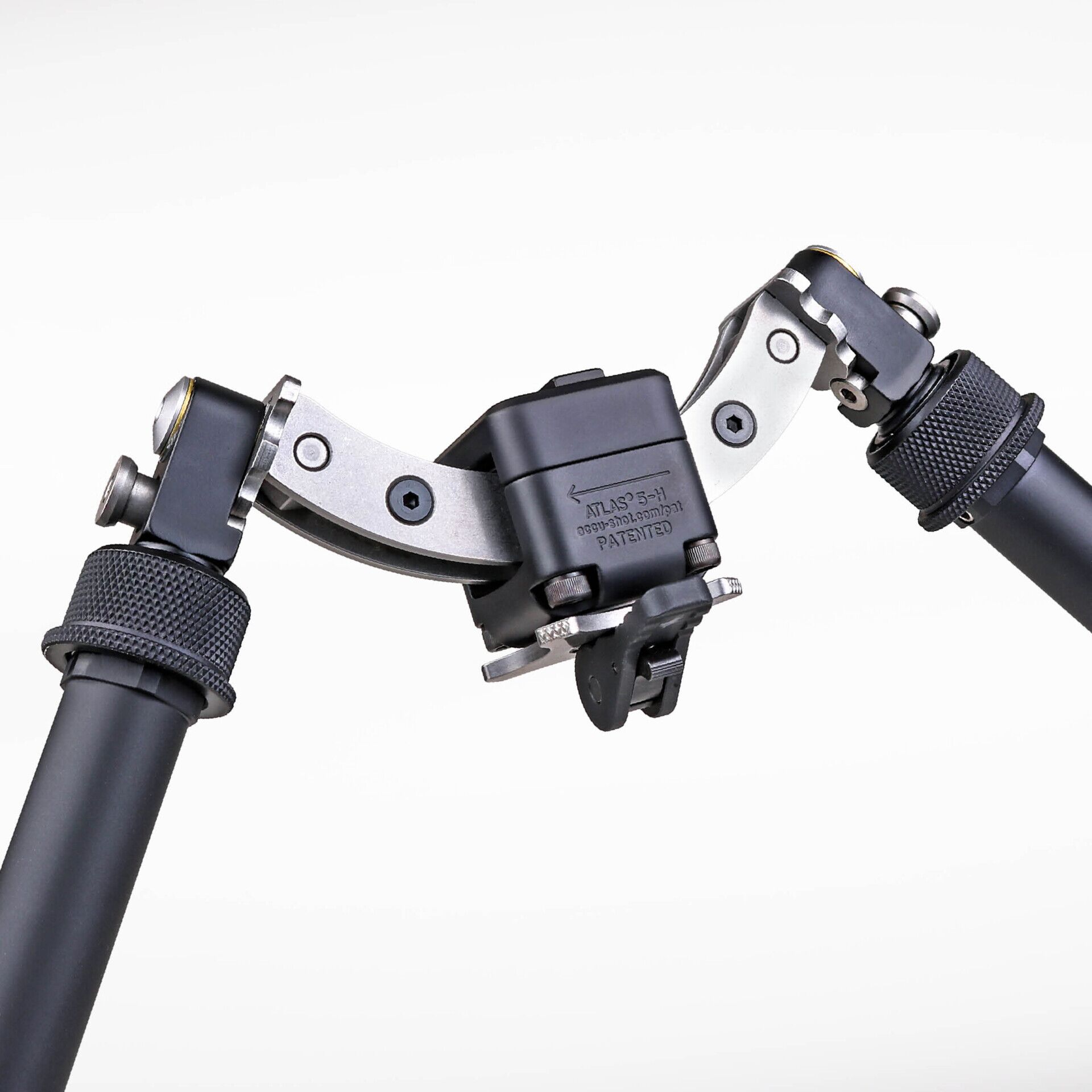

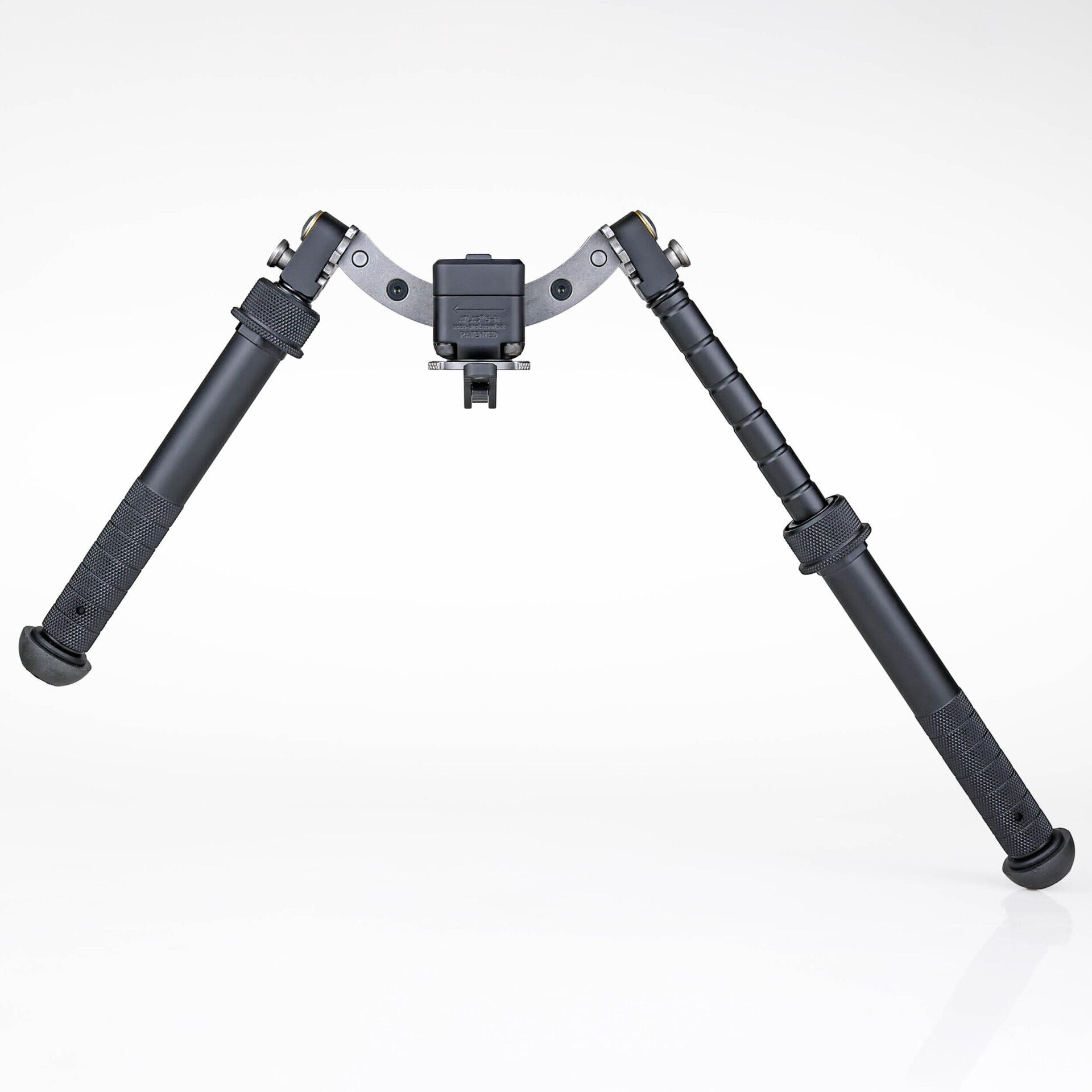

BT35-NC 5-H Atlas Bipod

$42995

Since B&T Industries introduced the Atlas Bipod in 2006, the shooting community found a usefulness in its patented, novel features. We began receiving requests for a “bigger,” “heavier,” “stouter” bipod with the same features.

The BT35-NC 5-H Atlas Bipod “No Clamp” has a two hole pattern of 1.100” with the holes being 10/32 threads. It requires the 5-H-ADM Lever or will mount directly to our BT19 AI Spigot. *See below for other mount compatibility specifications.

It is comprised of 6061-T6 aluminum that is Mil-Spec Type III hard coat anodized and have heat treated, stainless steel components. Includes two 10-32 x 3/8″ flathead socket screws. Available in black only.

  • Height Range: 4.8 – 10″ (6.6” at 90°)
  • Pan: 30 degrees
  • Cant: 30 degrees
  • Pan and Cant can be locked out at top dead center
  • Pan and Cant Tension Wheel has Detent adjustability and Cam-Lock
  • Position Button 0.5″ diameter
  • 5 leg positions: 0, 45, 90, 135 & 180 degrees
  • Non-Rotating Legs: outer leg does not rotate around inner leg
  • Weight: 25.74 ounces approx.
  • Footprint: 14.5–19.5″

Proudly designed, engineered, machined and assembled in america

In stock

Categories: , Product ID: 43020

Description

*If planning for installation of another mount, the 5-H would require Area 419’s ARCALOCK Spigot Extension for clearance of the cradle and operation of the clamp’s knob.

List of optional mounts that we currently offer and would require the Extension: Area 419’s ARCALOCK Clamp, Arisaka’s Picatinny Rail Slider or Really Right Stuff’s BTC-Pro Bipod Clamp



Applying a New Finish

More Information, Tutorial & Accessories
  • NCNClamp – Atlas 5-H Series Bipod Video Tutorial
  • Independent, intentional and non-orientated leg positioning allows either hand to move leg into any of the five leg positions
  • Solid leg positions allows shooter to load the bipod at the 45 and 90 degree positions.
  • Non-orientated leg length adjustment done by either hand: Outer leg slides on the Inner leg locating on any of the seven positions ¾” apart
  • Standard soft, durable rubber feet that are suitable for many surfaces included
  • Optional interchangeable Ski Feet and Raider Cleat easily swapped in the field with the press of a stainless steel plunger
  • Optional mounting systems available for Accuracy International and Sako rifles

Additional information

Weight 25.74 oz
