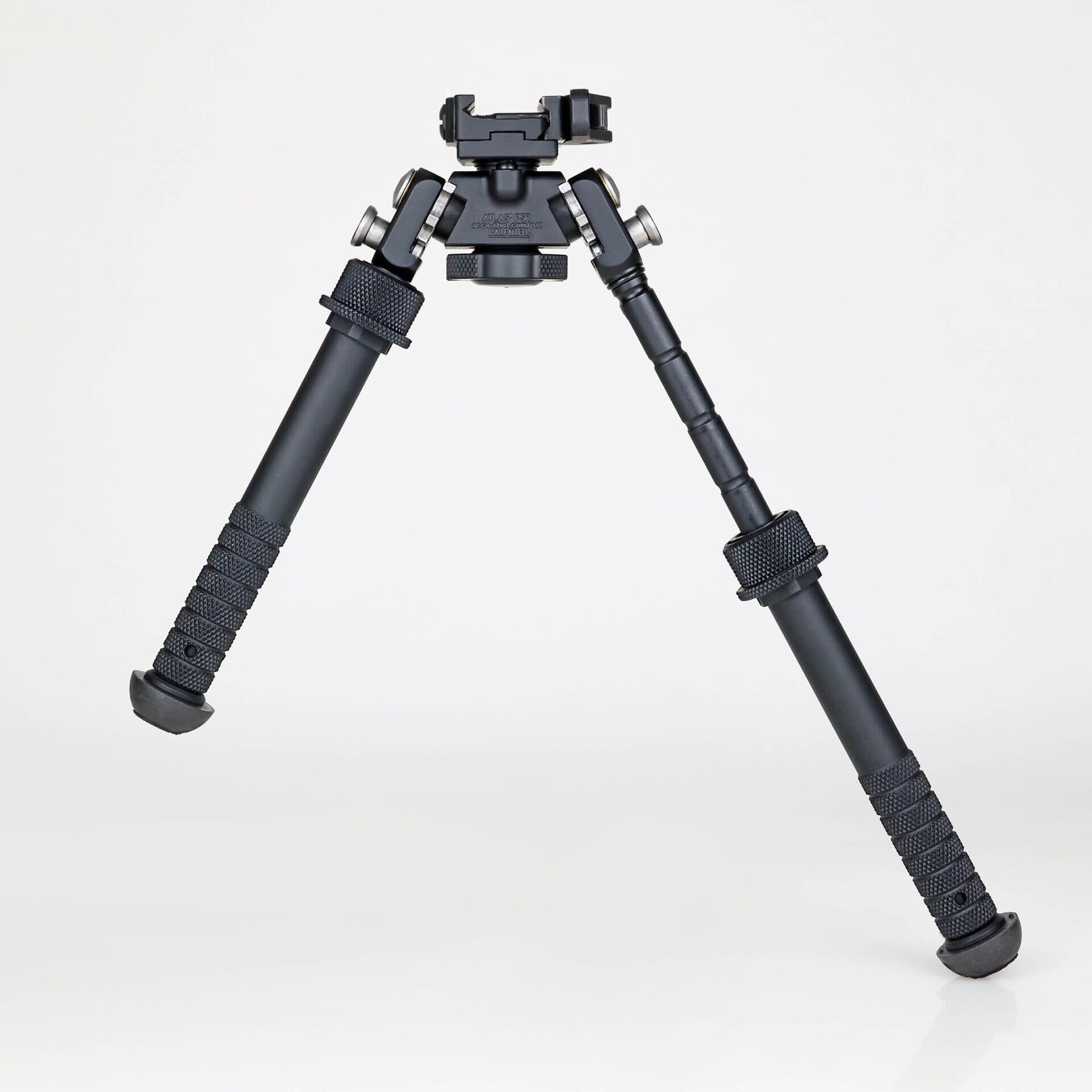

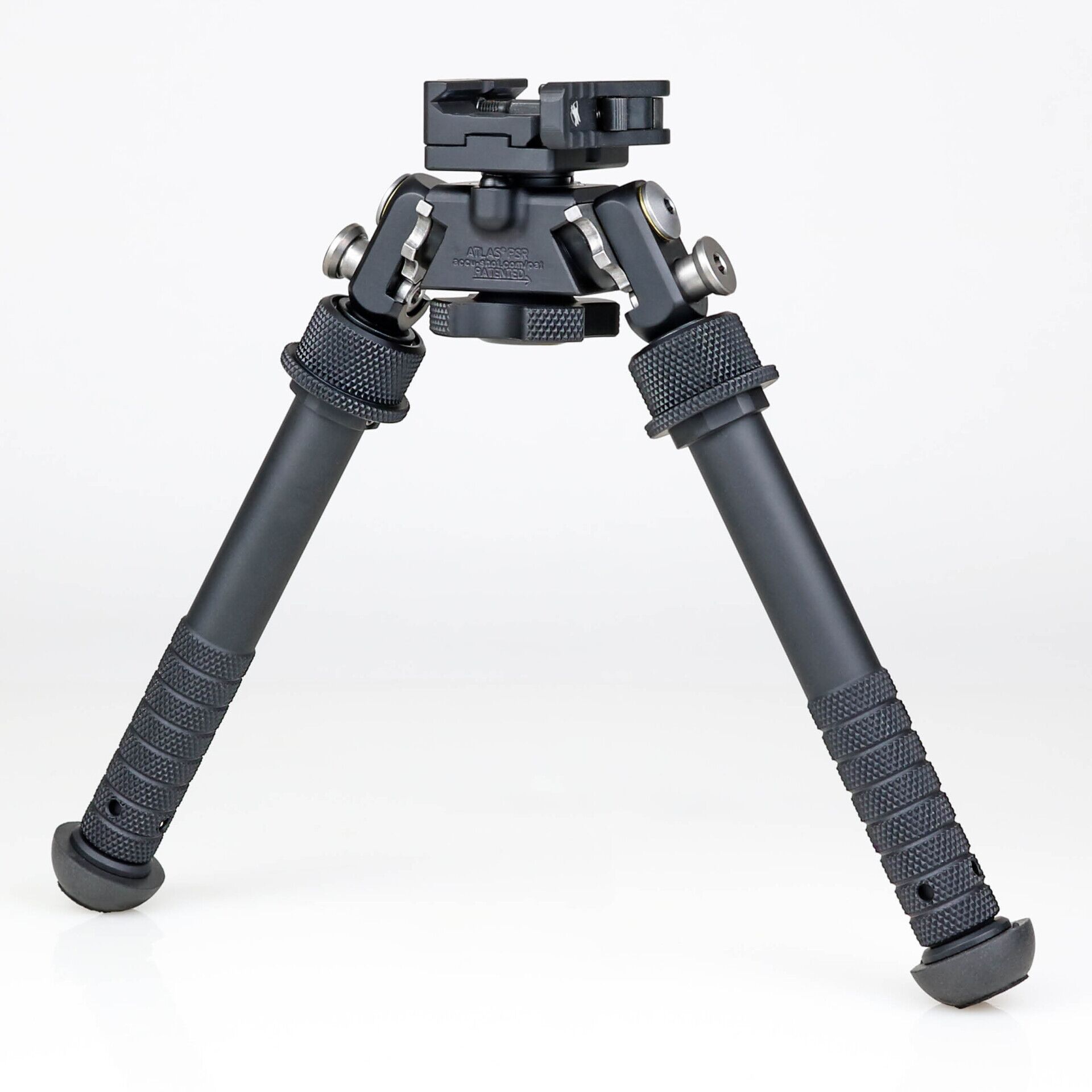

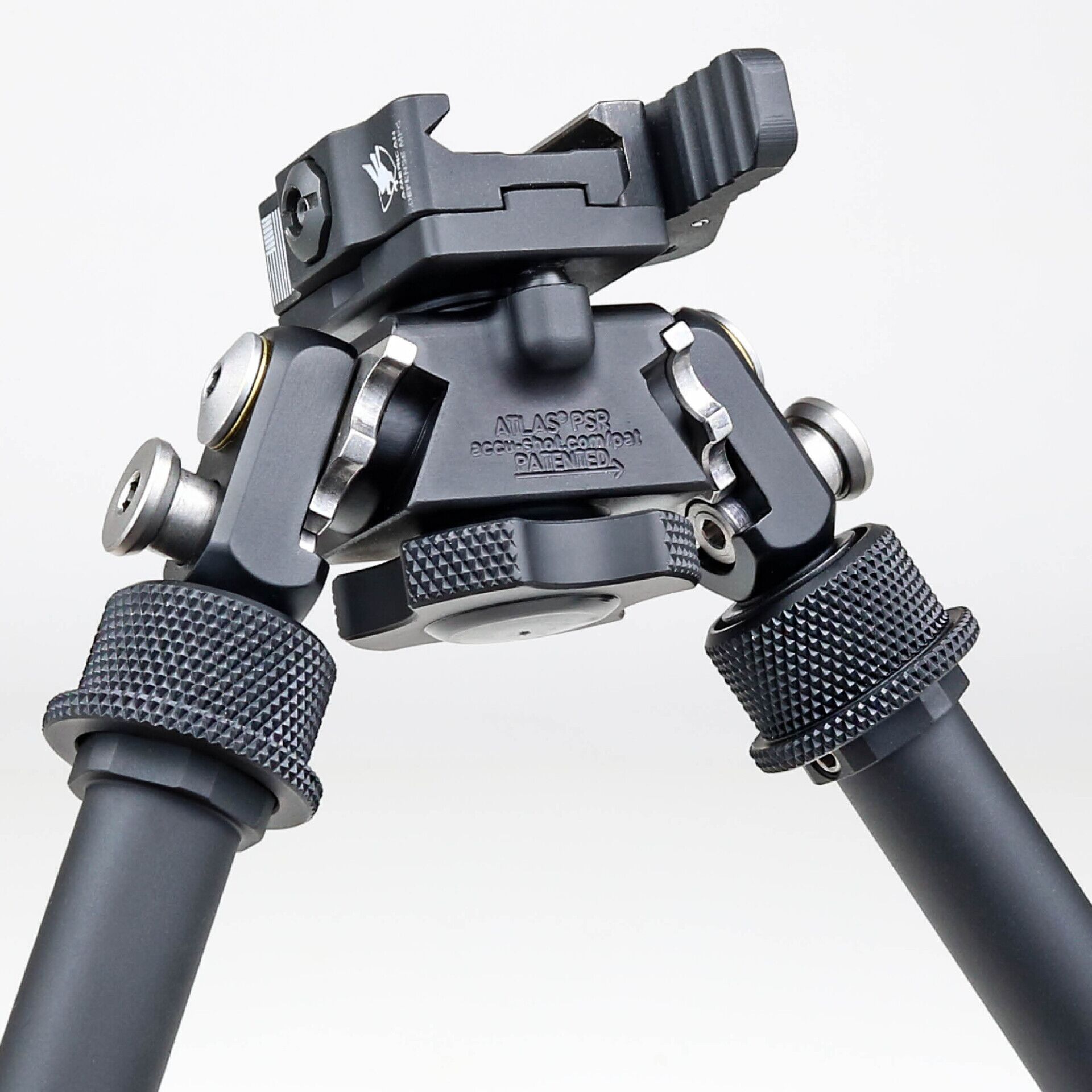

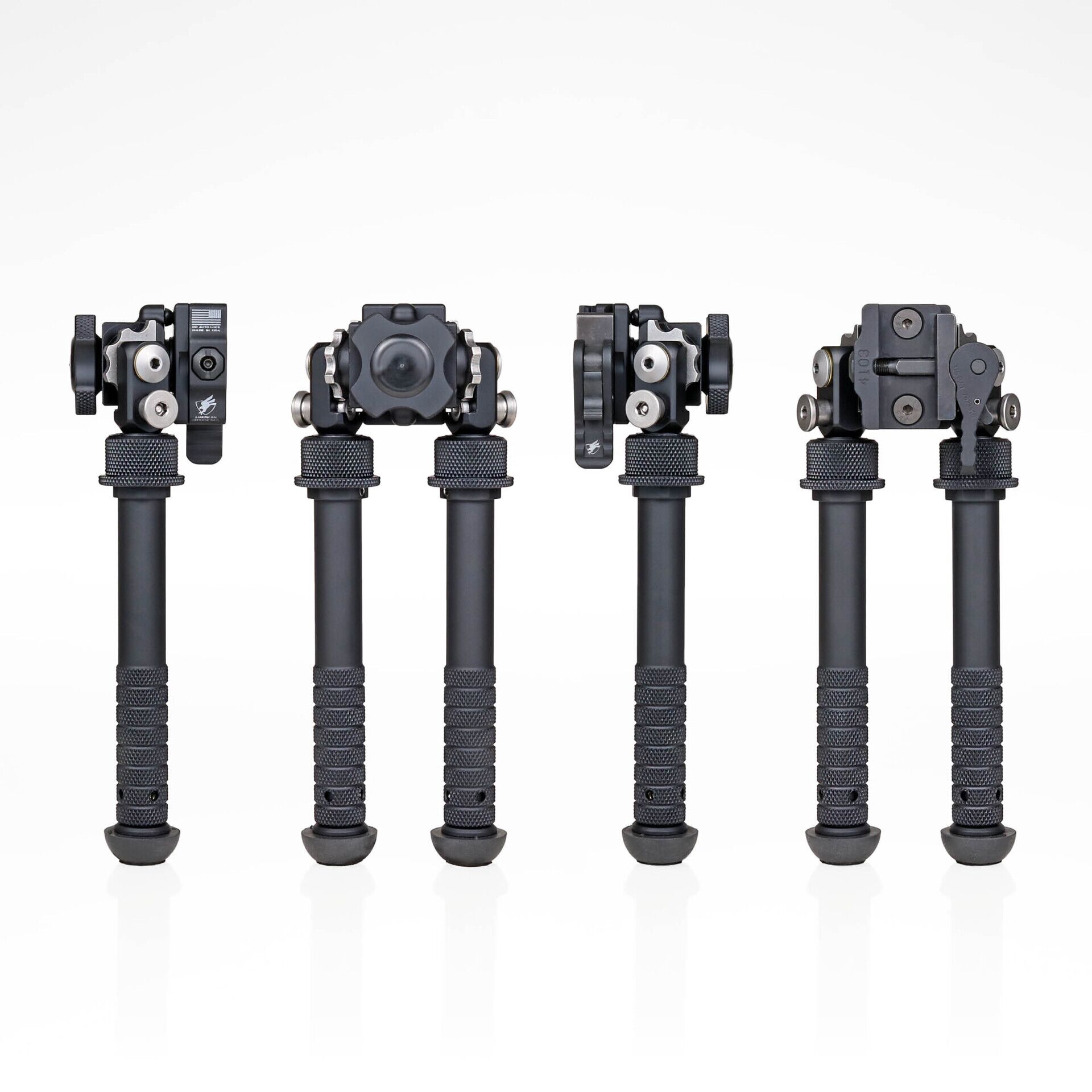

BT46-LW17 PSR Atlas Bipod: Standard height with ADM-170-S Lever

$35495

The BT46-LW17 PSR (Precision Sniper Rifle) Atlas Bipod mounts directly to any 1913 style Picatinny rail via the included ADM-170-S lever.

It is comprised of 6061-T6 aluminum, except the strengthened inner legs which are made from 7075-T6 aluminum that are Mil-Spec Type III hard coat anodized and have heat treated, stainless steel components. Available in black only.

Selected for the SOCOM PSR (Precision Sniper Rifle) Weapons System. NSN 1005-01-663-0038

  • Height Range: 5.2 – 9.6″ (6.8” at 90°)
  • Preloaded Pan: 30 degrees
  • Preloaded Cant: 30 degrees
  • Position Button 0.5″ diameter
  • Fore and Aft pivot limiting Bosses

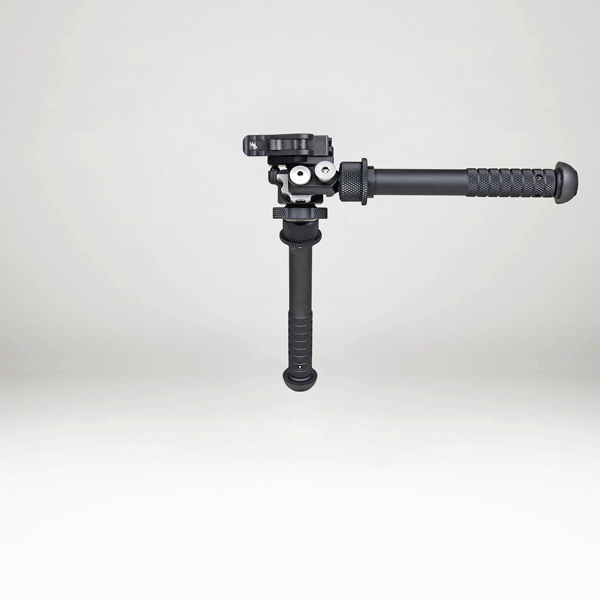

  • 5 leg positions: 0, 45, 90, 135 & 180 degrees
  • Non-Rotating Legs: outer leg does not rotate around inner leg
  • Larger, stronger inner legs
  • Weight: 13.61 ounces approx.
  • Footprint: 8–11″

Proudly designed, engineered, machined and assembled in america

Categories: , Product ID: 854

Description

Applying a New Finish

ADM-170-S Lever Adjustment & Operation
More Information, Tutorial & Accessories
  • LW17: Lever Mount With ARMS 17S Mount – Atlas PSR Series Bipod Video Tutorial
  • UHMW components used for smooth tracking
  • Preload on Pan and Cant can be tightened by means of the knurled knob

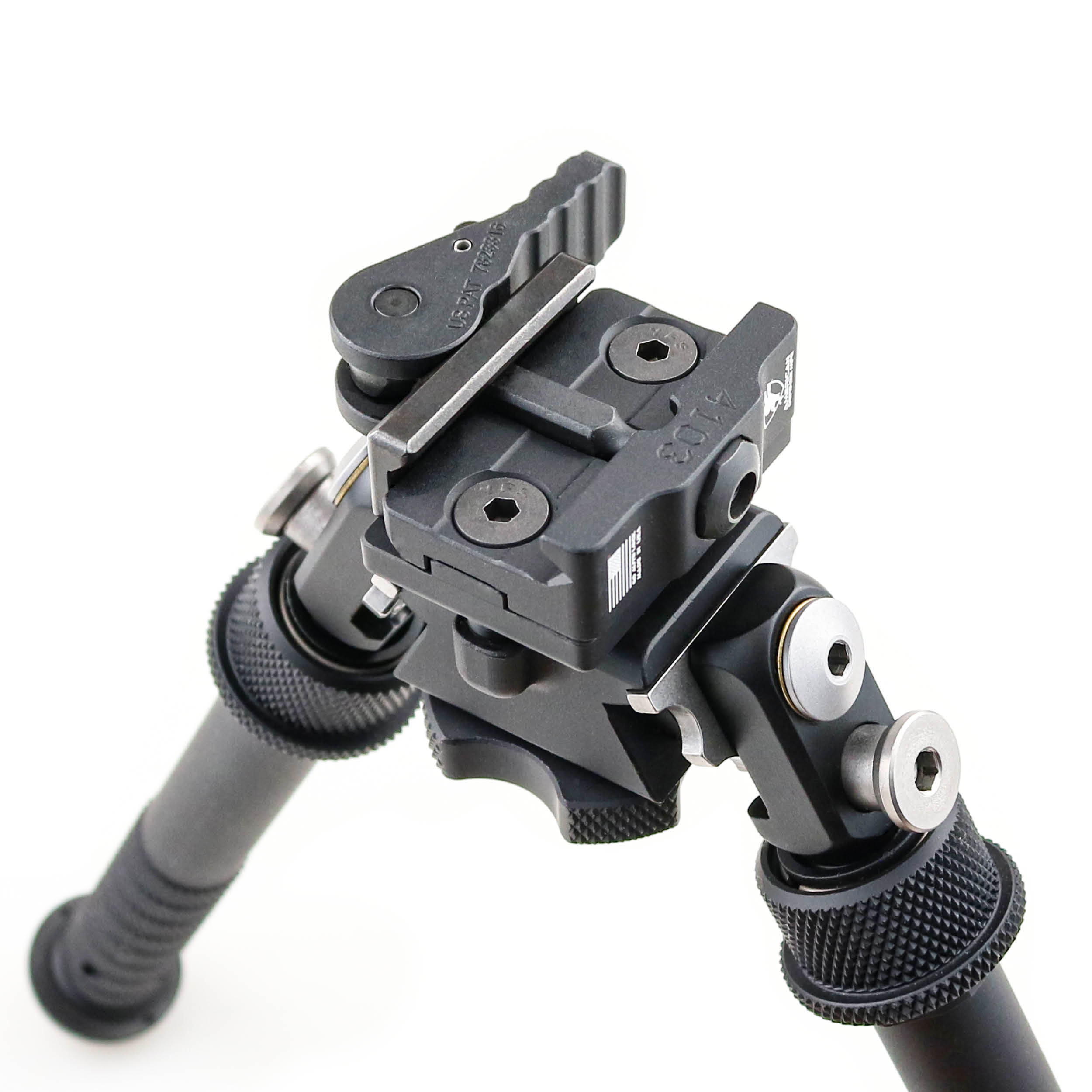

  • Picatinny Rail Mount interface by either standard machine screw fastener based clamp or optional ARMS 17S lever mount
  • Independent, intentional and non-orientated leg positioning allows either hand to move leg into any of the five leg positions
  • Solid leg positions allows shooter to load the bipod at the 45 and 90 degree positions.
  • Non-orientated leg length adjustment done by either hand: Outer leg slides on the Inner leg locating on any of the five positions ¾” apart
  • Standard soft, durable rubber feet that are suitable for many surfaces included
  • Optional 3” Leg Extensions to increase height
  • Optional interchangeable Ski Feet and Raider Cleat Feet easily swapped in the field with the press of a stainless steel plunger
  • Optional mounting systems available for Accuracy International and Sako rifles

Additional information

Weight 13.61 oz
