Description

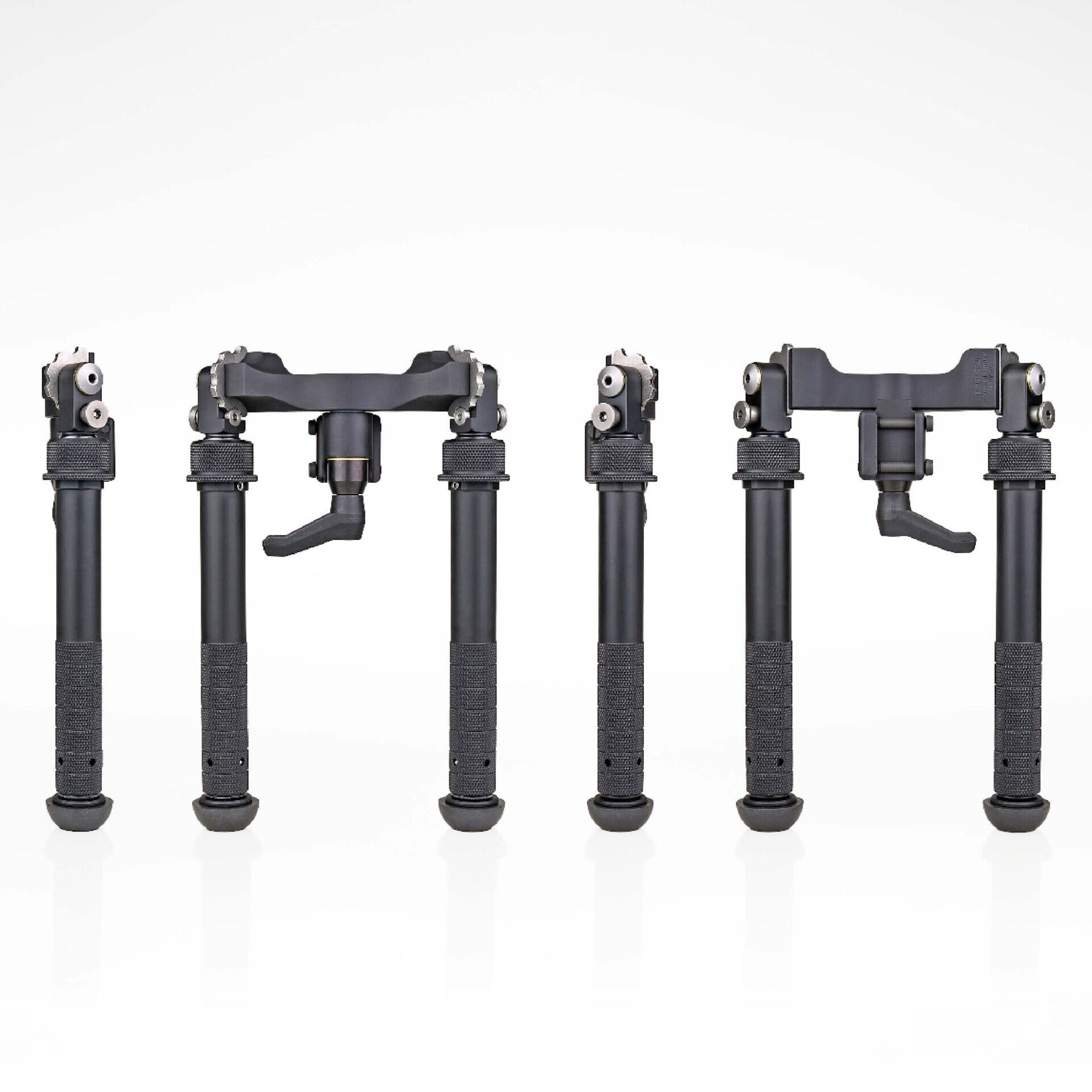

The BT72 is comprised of 6061-T6 aluminum that is Mil-Spec Type III hard coat anodized with heat treated stainless steel components. Available in black only.

• Height Range: 5.6 – 10.8” (7.5” at 90°)
• Preloaded Cant: 63 degrees
• Position Button: 0.5″ diameter
• 5 leg positions: 0, 45, 90, 135 & 180 degrees
• Non-Rotating Legs: outer leg does not rotate around inner leg
• Weight: 21.54 ounces
• Footprint: 14.75-19.37″

Using the KMW “Pod-Loc®”

With the Super CAL bipod mounted to your rifle, you will be able to lock and un-lock the canting motion by rotating the Pod-Loc® lever. Turn clockwise to lock and counter clockwise to un-lock. The Pod-Loc® lever position can be adjusted for positioning by pulling the lever directly away from the body of the Super CAL and rotating to desired position. This positioning can be repeated until optimal position is achieved.

More Information & Accessories

• Preload on Cant can be adjusted by removing Pod-Loc and tightening/loosening the exposed nut by 1/8-1/4 turns until desired tension achieved
• Picatinny Rail Mount interface by two 10-32 x 1.25″ Clamp Bolt – Flat Head Fasteners and based clamp; optional 10-32 x 1.25″ Socket Cap Screws available separately
• Independent, intentional and non-orientated leg positioning allows either hand to move leg into any of the five leg positions
• Solid leg positions allows shooter to load the bipod at the 45 and 90 degree positions.
• Non-orientated leg length adjustment done by either hand: Outer leg slides on the Inner leg locating on any of the five positions ¾” apart
• Hold What You Move Technology^®
• Includes Super CAL size Standard Rubber Feet durable and suitable for many surfaces
• Optional quick-change Ski Feet and Raider Cleat easily swapped in the field with the press of a stainless steel plunger
• Optional mounting systems available for Accuracy International and Sako rifles
