Description

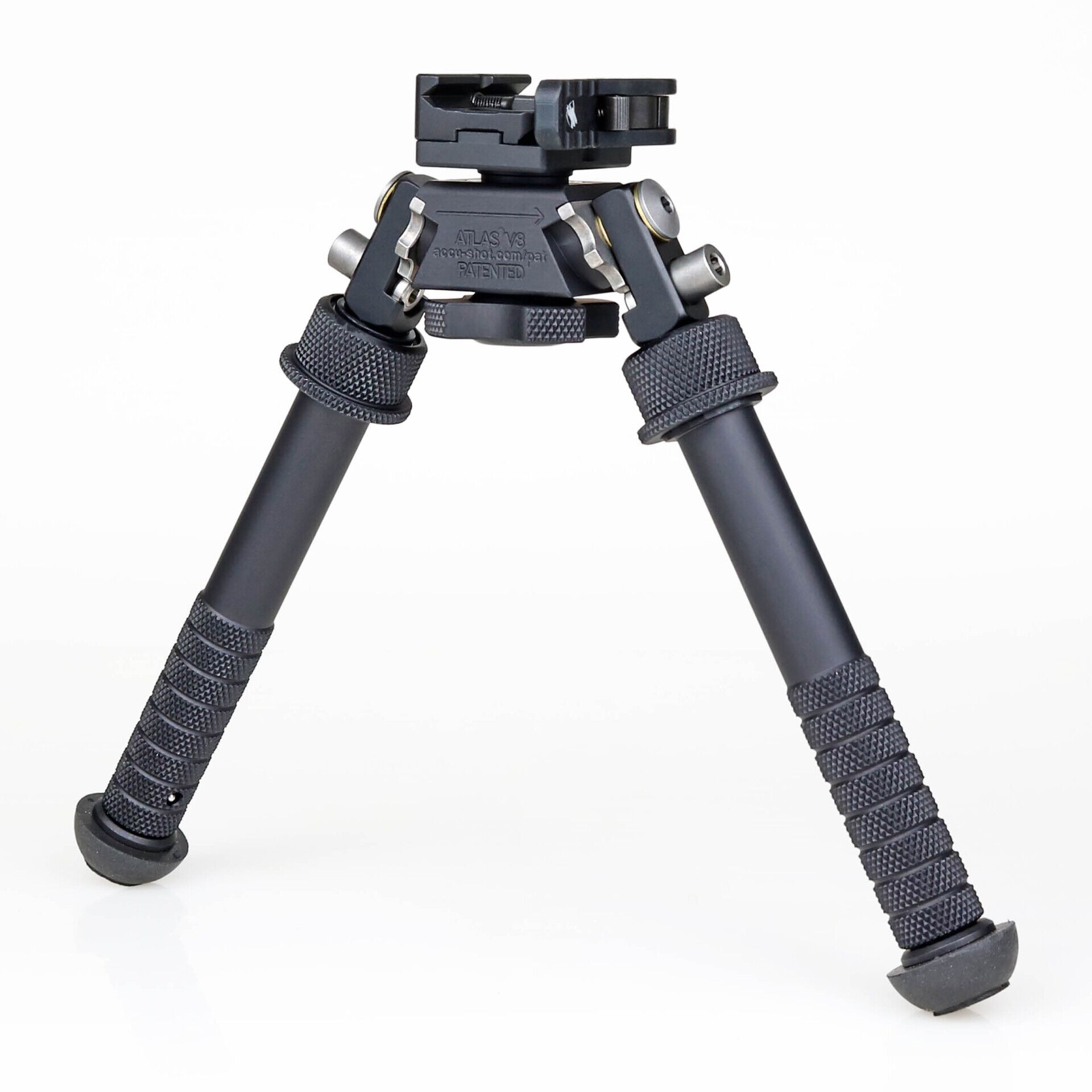

The BT10-LW17 is comprised of 6061-T6 aluminum that is Mil-Spec Type III hard coat anodized and have heat treated stainless steel components. Available in black only.

• Height Range: 5.2 – 9.6″ (6.8” at 90°)
• Preloaded Pan: 30 degrees
• Preloaded Cant: 30 degrees
• Position Button 0.36″ diameter

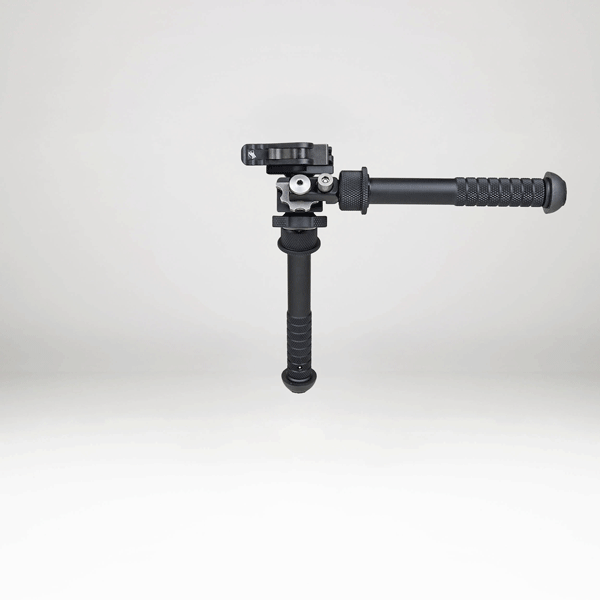

• 5 leg positions: 0, 45, 90, 135 & 180 degrees
• Weight: 12.7 ounces approx.
• Footprint: 8–11″

Applying a New Finish

ADM-170-S Lever Adjustment & Operation

• Video: How to Adjust the ADM Quick Detach Lever on the Atlas® Bipod

• Download and Print Operating Instructions for the ADM Quick Detach Lever

More Information, Tutorial & Accessories

• LW17: Lever Mount With ARMS 17S Mount – Atlas® V8 Series Bipod Video Tutorial
• UHMW components used for smooth tracking
• Preload on Pan and Cant can be tightened using the knurled knob

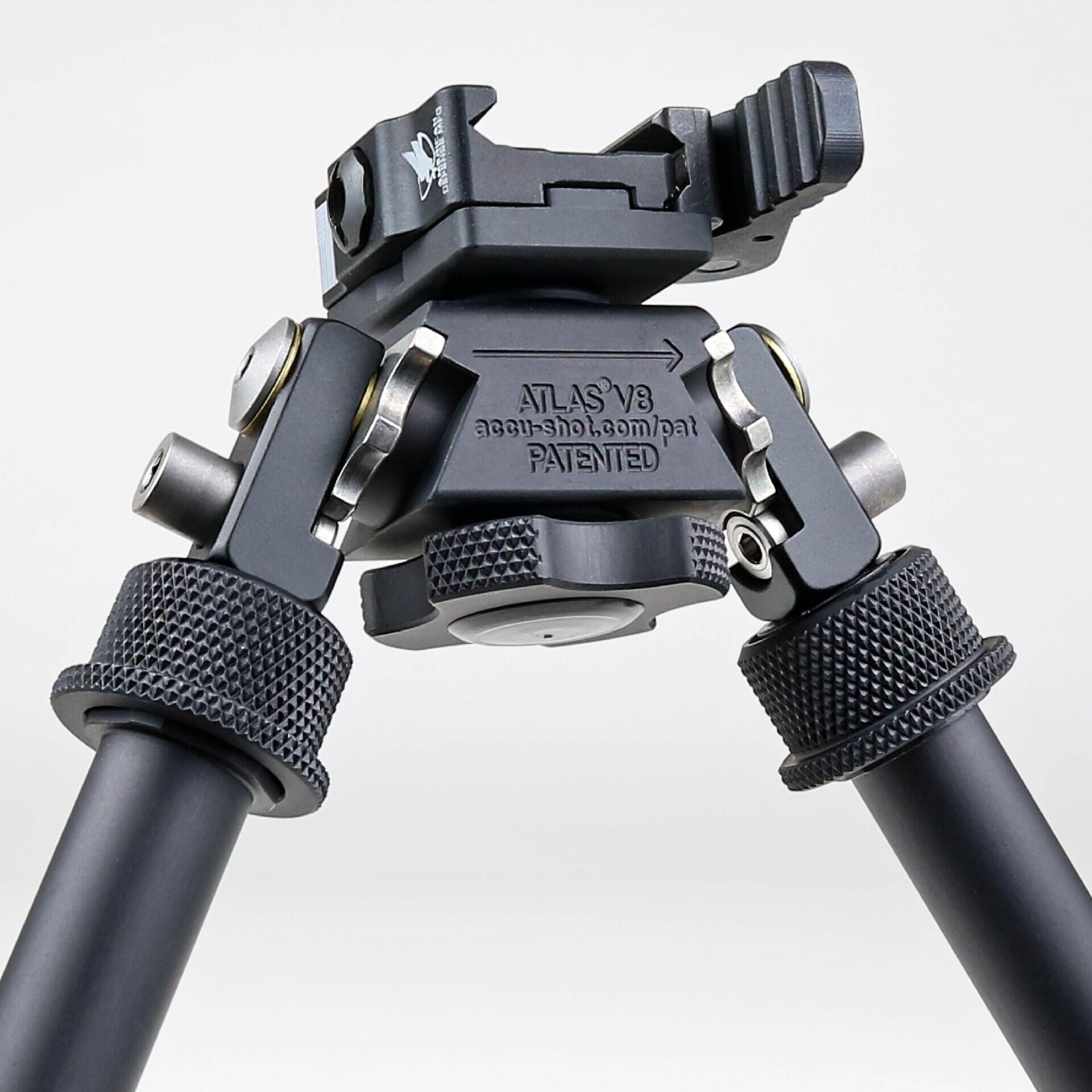

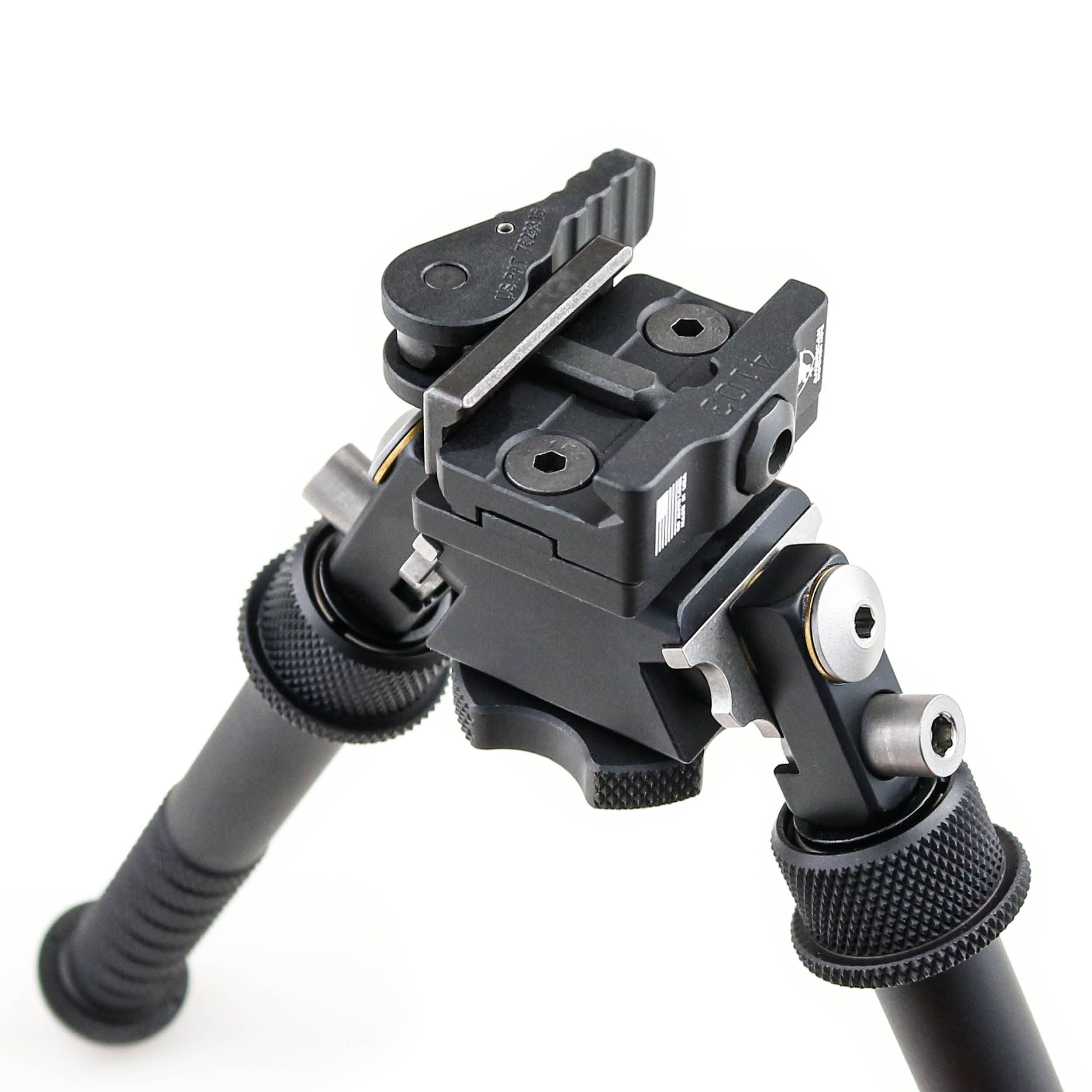

• Picatinny Rail Lever Mount interface with American Defense MFG ADM-170-S Picatinny Rail Lever Mount installed
• Independent, intentional and non-orientated leg positioning allows either hand to move leg into any of the five leg positions
• Solid leg positions allows shooter to load the bipod at the 45 and 90 degree positions.

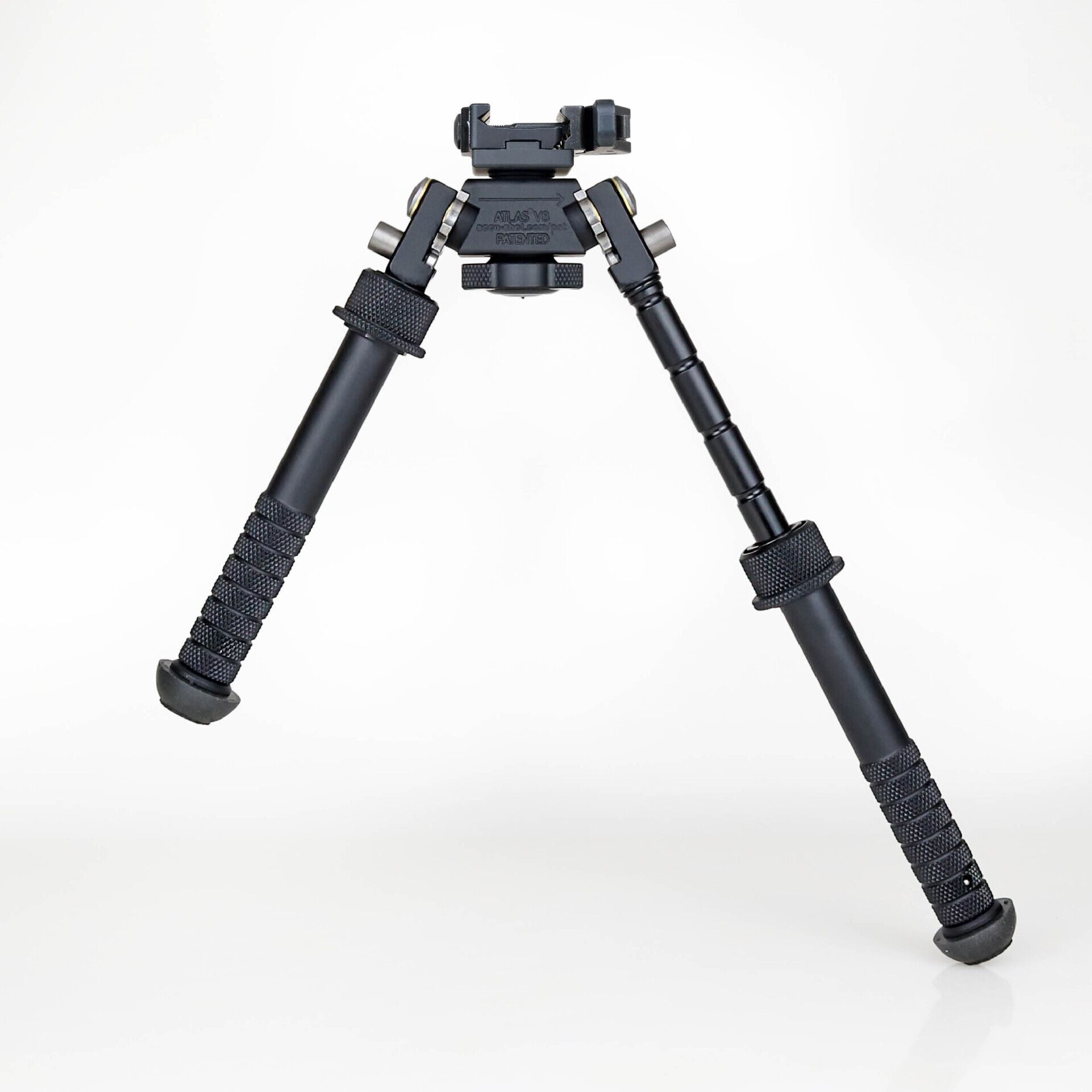

• Non-orientated leg length adjustment done by either hand: Outer leg slides on the Inner leg locating on any of five positions ¾” apart
• Hold What You Move Technology^®
• Includes our Standard Rubber Feet durable and suitable for many surfaces
• Optional Leg Extensions  and Adjustable Leg Extensions to increase height
• Optional quick-change Ski Feet and Raider Cleat Feet easily swapped in the field with the press of a stainless steel plunger
• Optional mounting systems available for Accuracy International and Sako rifles
