Description

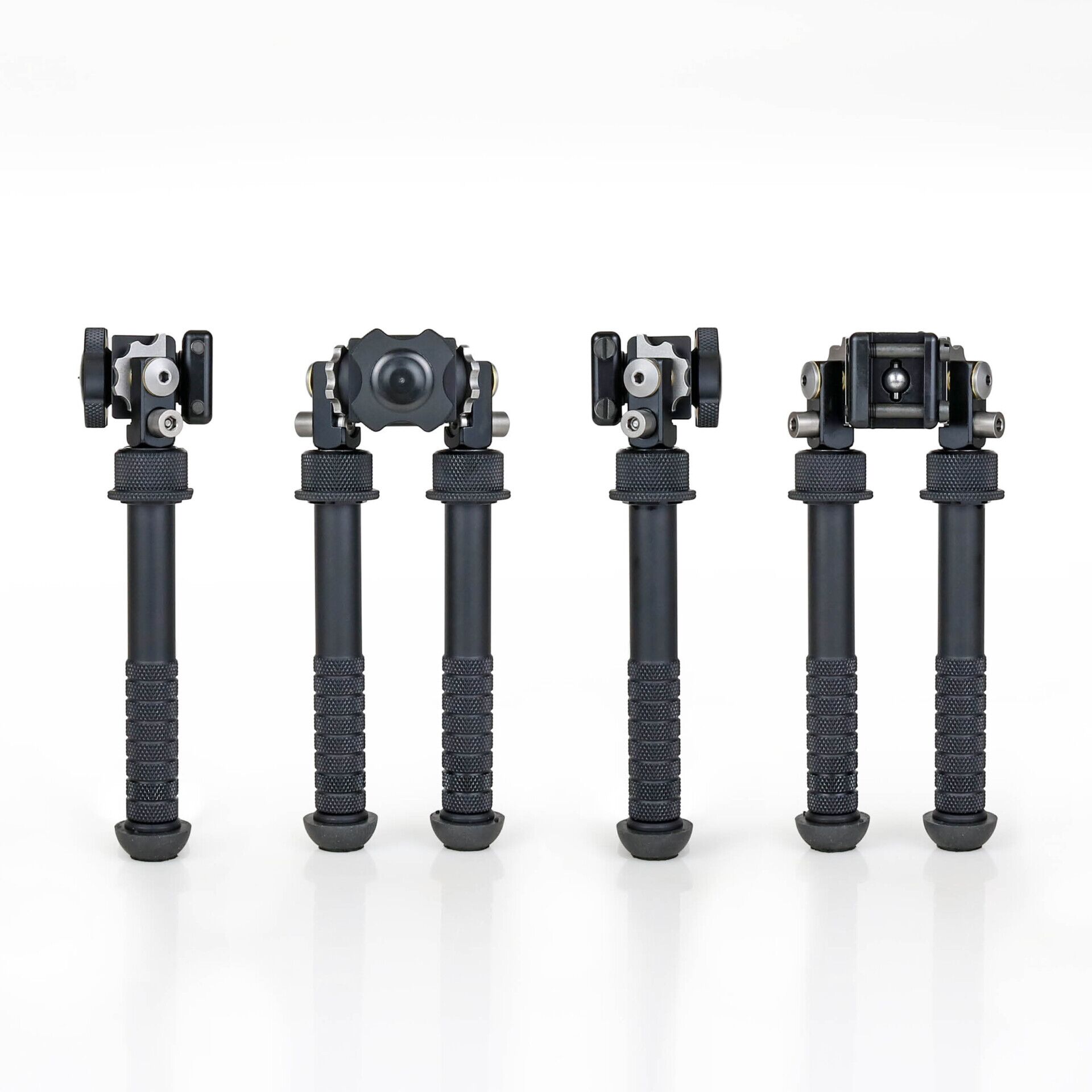

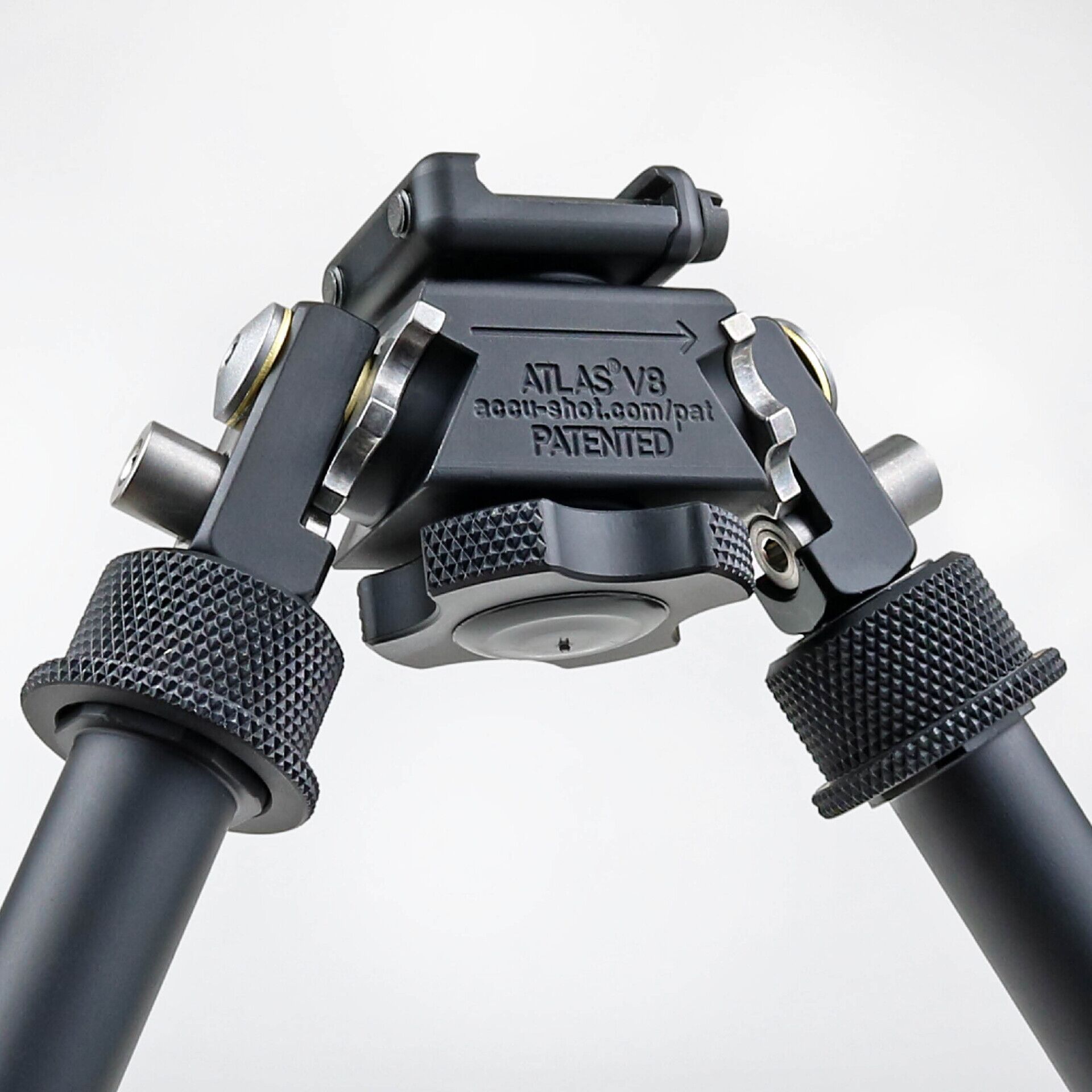

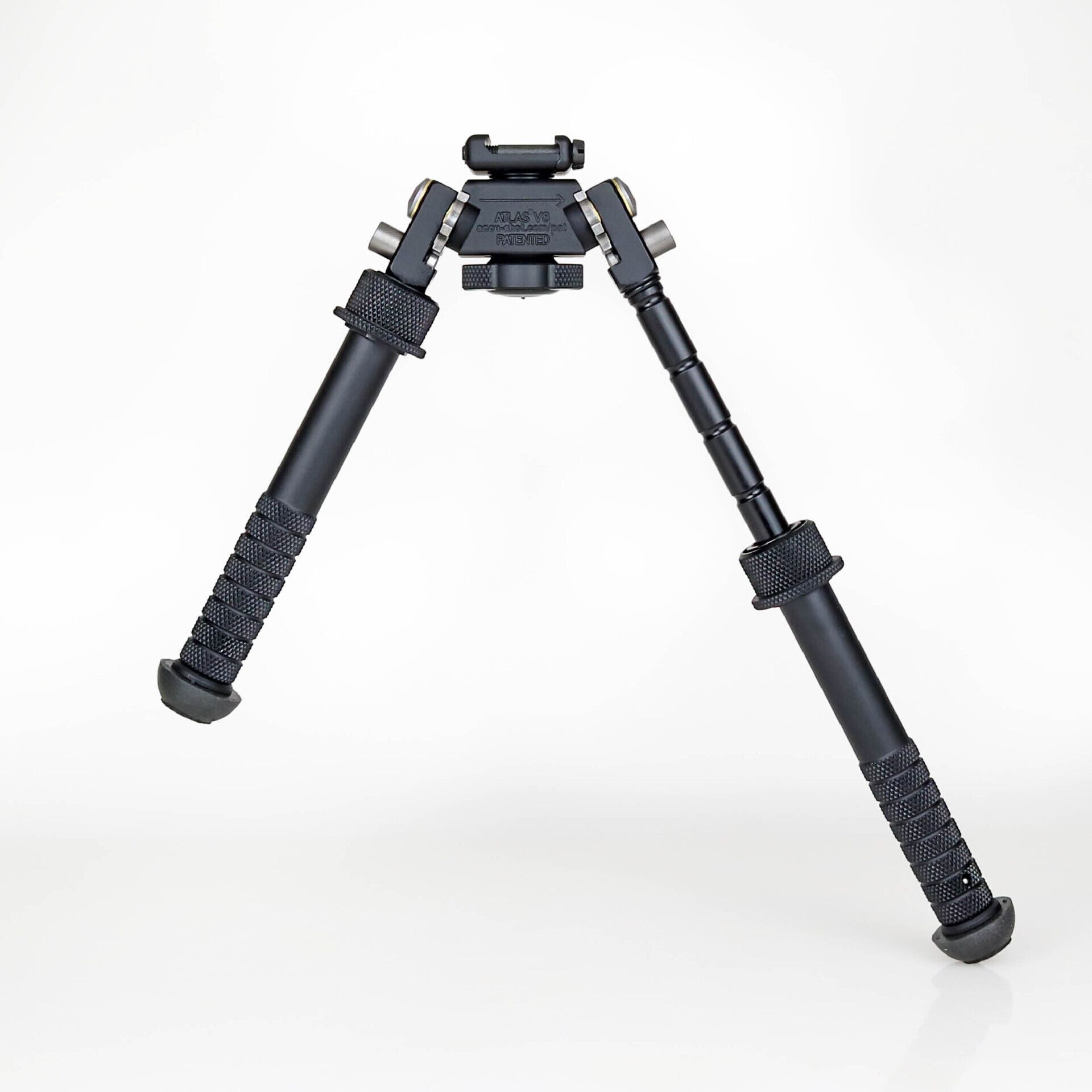

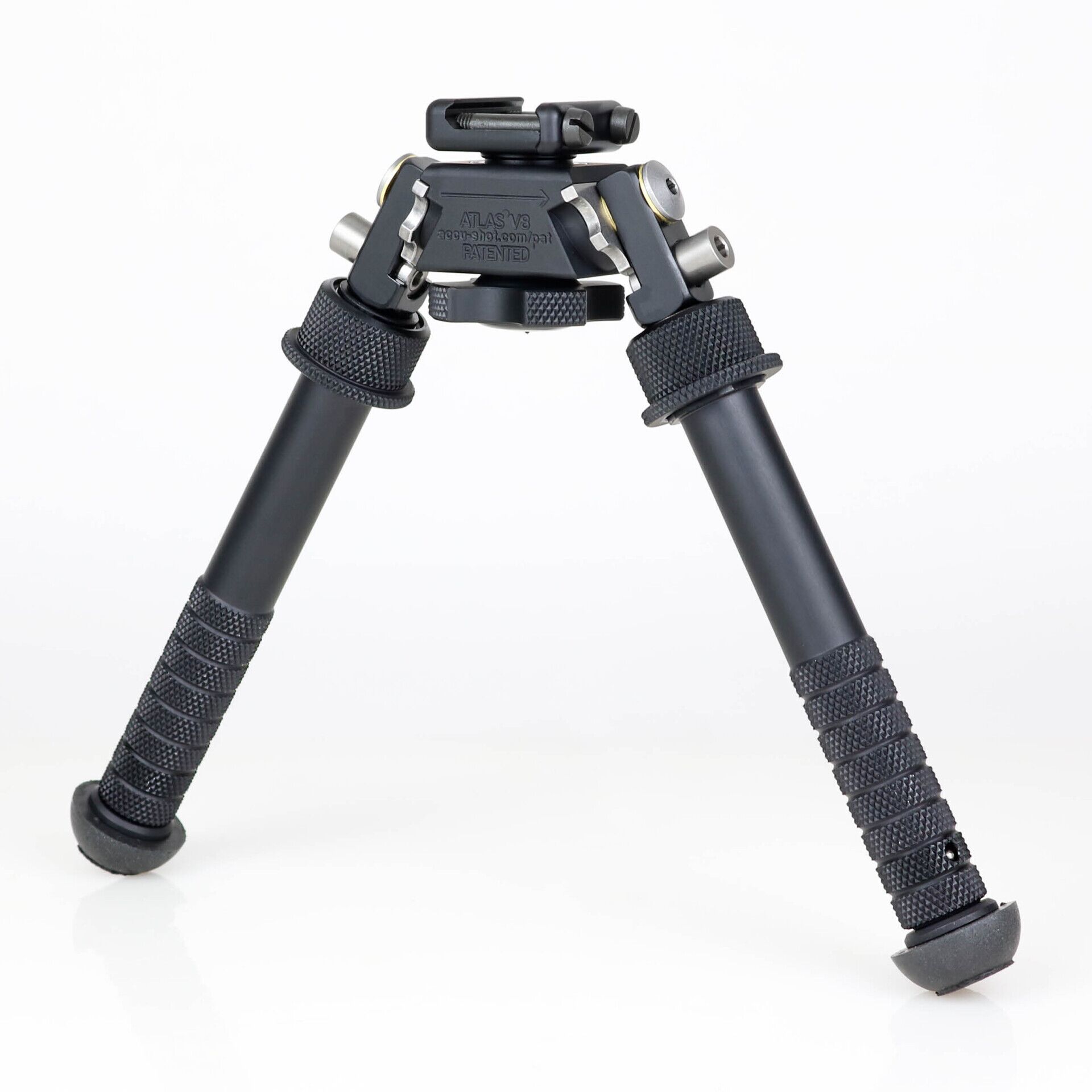

The BT10 is comprised of 6061-T6 aluminum that is Mil-Spec Type III hard coat anodized with heat treated stainless steel components. Available in black only.

• Height Range: 4.8 – 9.1″ (6.3” at 90°)
• Preloaded Pan: 30 degrees
• Preloaded Cant: 30 degrees
• Position Button 0.36″ diameter

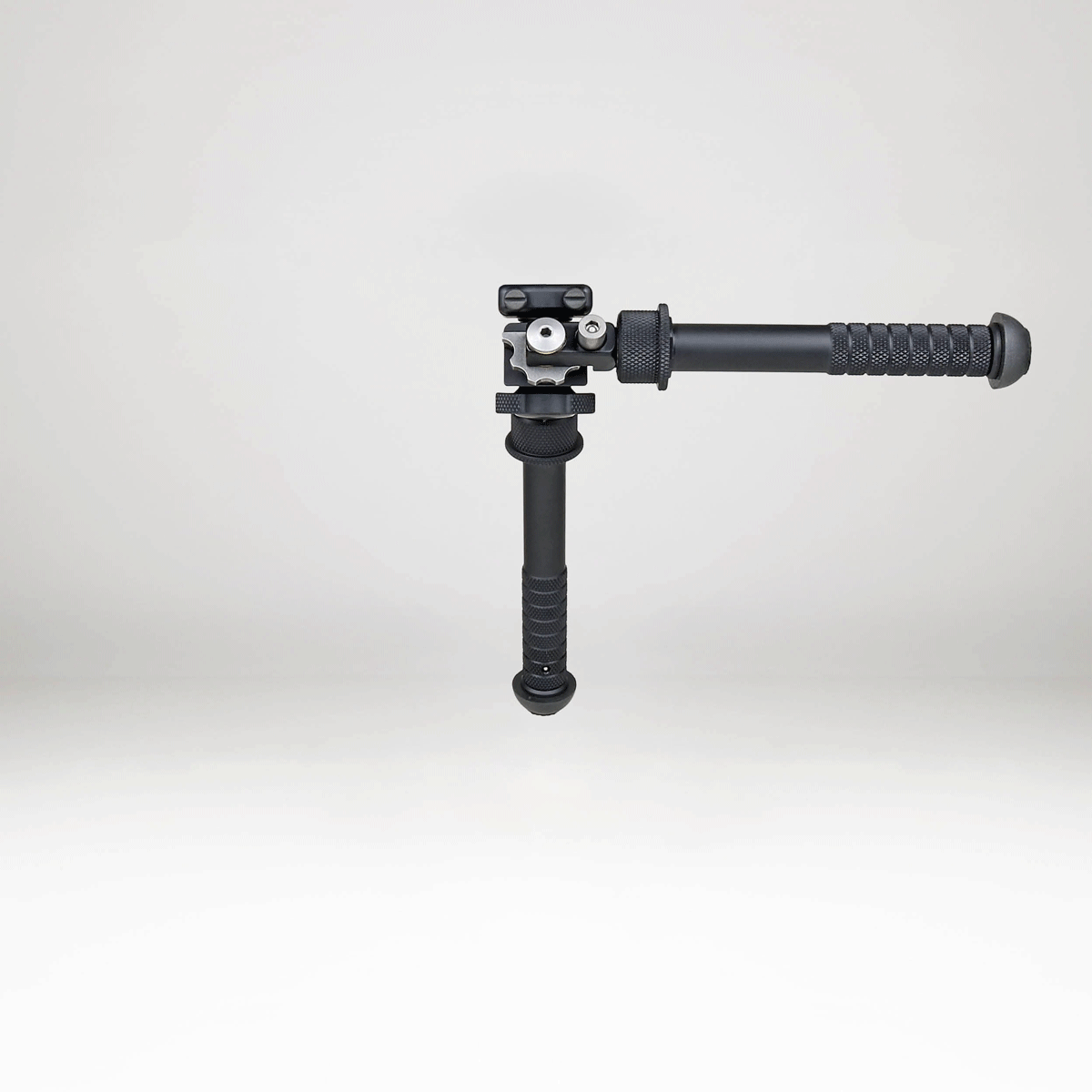

• 5 leg positions: 0, 45, 90, 135 & 180 degrees
• Weight: 11.0 ounces approx.
• Footprint: 8–11″

Applying a New Finish

More Information, Tutorial & Accessories

• Atlas® V8 Series Bipod Video Tutorial
• UHMW components used for smooth tracking
• Preload on Pan and Cant can be tightened using the knurled knob
• Picatinny Rail Mount interface by two 10-32 x 1.25″ Clamp Bolt – Flat Head Fasteners and based clamp; optional 10-32 x 1.25″ Socket Cap Screws available separately
• Independent, intentional and non-orientated leg positioning allows either hand to move leg into any of the five leg positions
• Solid leg positions allows shooter to load the bipod at the 45 and 90 degree positions.
• Non-orientated leg length adjustment done by either hand: Outer leg slides on the Inner leg locating on any of five positions ¾” apart
• Hold What You Move Technology®
• Includes our Standard Rubber Feet durable and suitable for many surfaces
• Optional Leg Extensions  and Adjustable Leg Extensions to increase height
• Optional quick-change Ski Feet and Raider Cleat Feet easily swapped in the field with the press of a stainless steel plunger
• Optional mounting systems available for Accuracy International and Sako rifles



Conversion: BT10 2-Screw Clamp to BT10-LW17 Quick Detach Lever

Below is a common question from customers who purchased a BT10:

“I bought an Atlas® Bipod with the 2 screw mount (BT10), but now want a quick release mount (BT10-LW17). Do you have an exchange policy that I can upgrade to the quick release mount?”

1. If you bought a BT10 from us and it is still in the original packaging and you want to upgrade to a BT10-LW17, we will give full value credit for the BT10 (less the S&H charges) towards the cost of the BT10-LW17.
2. If you have opened the original packaging, we can convert your BT10 into a BT10-NC for $60.00, add an ADM-170-S Lever Mount for $60.00. Doing both will cover the conversion of your BT10 into a BT10-LW17 for a total of $120.00, delivered back to you.
3. Customers can also purchase our BT43 allowing them to enjoy the functionality of a lever while keeping their BT10. Customers who are looking to exchange their unit please see our Exchange Policy. We encourage all customers to consider their purchase carefully.
