Description
It is comprised of 6061-T6 aluminum, except the strengthened inner legs which are made from 7075-T6 aluminum that are Mil-Spec Type III hard coat anodized with heat treated, stainless steel components. Available in black only.
- Height Range: 5.2 – 9.6″ (6.8” at 90°)
- Preloaded Pan: 30 degrees
- Preloaded Cant: 30 degrees
- Position Button 0.5″ diameter
- Fore and Aft pivot limiting Bosses

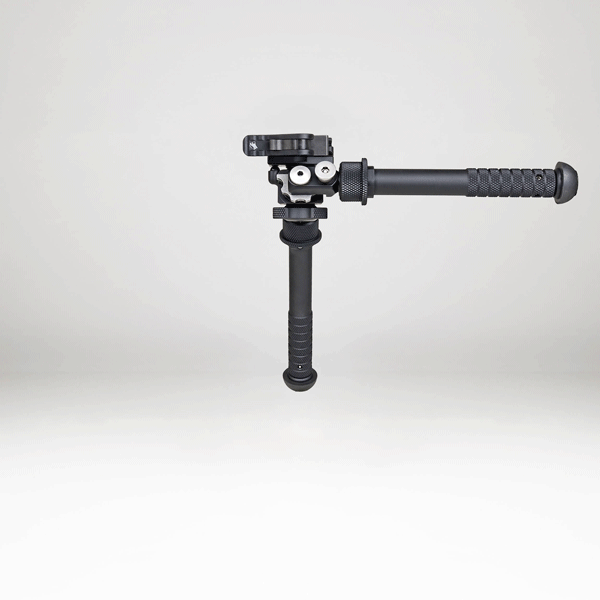

- 5 leg positions: 0, 45, 90, 135 & 180 degrees
- Non-Rotating Legs: outer leg does not rotate around inner leg
- Larger, stronger inner legs
- Weight: 13.61 ounces approx.
- Footprint: 8–11″
ADM-170-S Lever Adjustment & Operation
More Information, Tutorial & Accessories
- LW17: Lever Mount With ARMS 17S Mount – Atlas® PSR Series Bipod Video Tutorial
- UHMW components used for smooth tracking
- Preload on Pan and Cant can be tightened by using the knurled knob

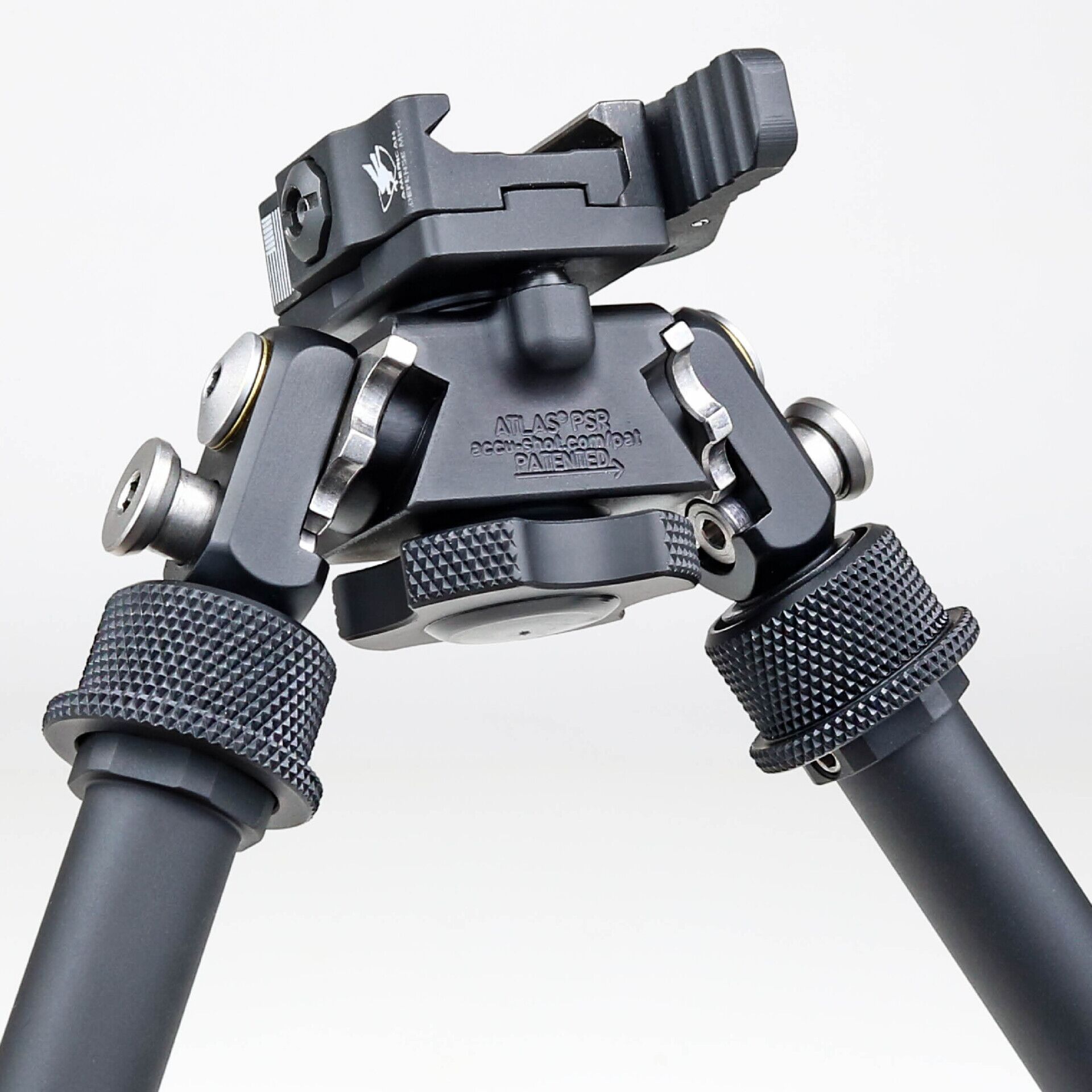

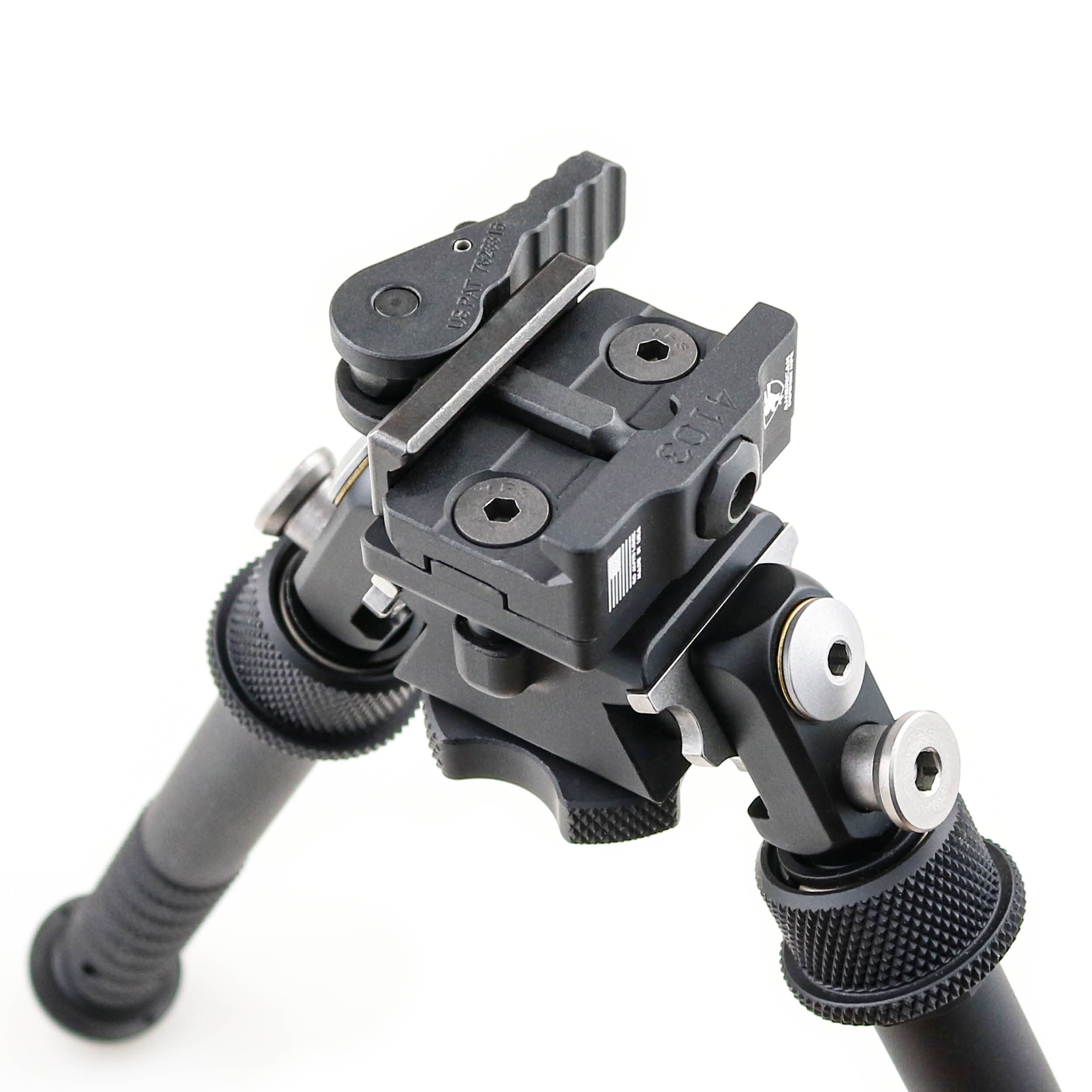

- Picatinny Rail Lever Mount interface with American Defense MFG ADM-170-S Picatinny Rail Lever Mount installed
- Independent, intentional and non-orientated leg positioning allows either hand to move leg into any of the five leg positions
- Solid leg positions allows shooter to load the bipod at the 45 and 90 degree positions.
- Non-orientated leg length adjustment done by either hand: Outer leg slides on the Inner leg locating on any of the five positions ¾” apart
- Hold What You Move Technology®
- Includes our Standard Rubber Feet durable and suitable for many surfaces
- Optional Leg Extensions and Adjustable Leg Extensions to increase height
- Optional quick-change Ski Feet and Raider Cleat Feet easily swapped in the field with the press of a stainless steel plunger
- Optional mounting systems available for Accuracy International and Sako rifles
