Description

The BT10-NC is comprised of 6061-T6 aluminum that is Mil-Spec Type III hard coat anodized with heat treated stainless steel components. Includes two 10-32 x 3/8″ flathead socket screws. Available in black only.

• Height Range: 5 – 9.4″ (6.5” at 90°)
• Preloaded Pan: 30 degrees
• Preloaded Cant: 30 degrees
• Position Button 0.36″ diameter

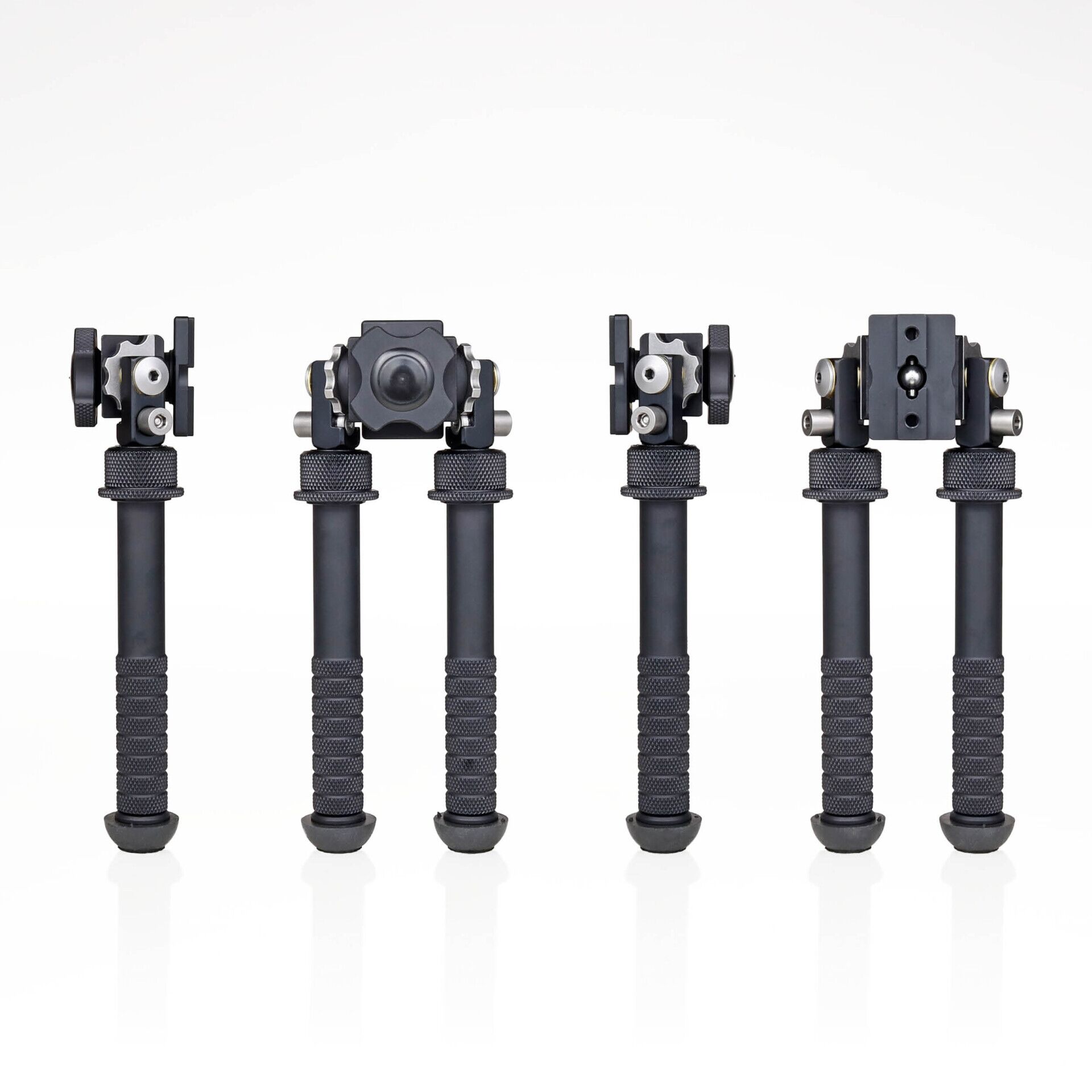

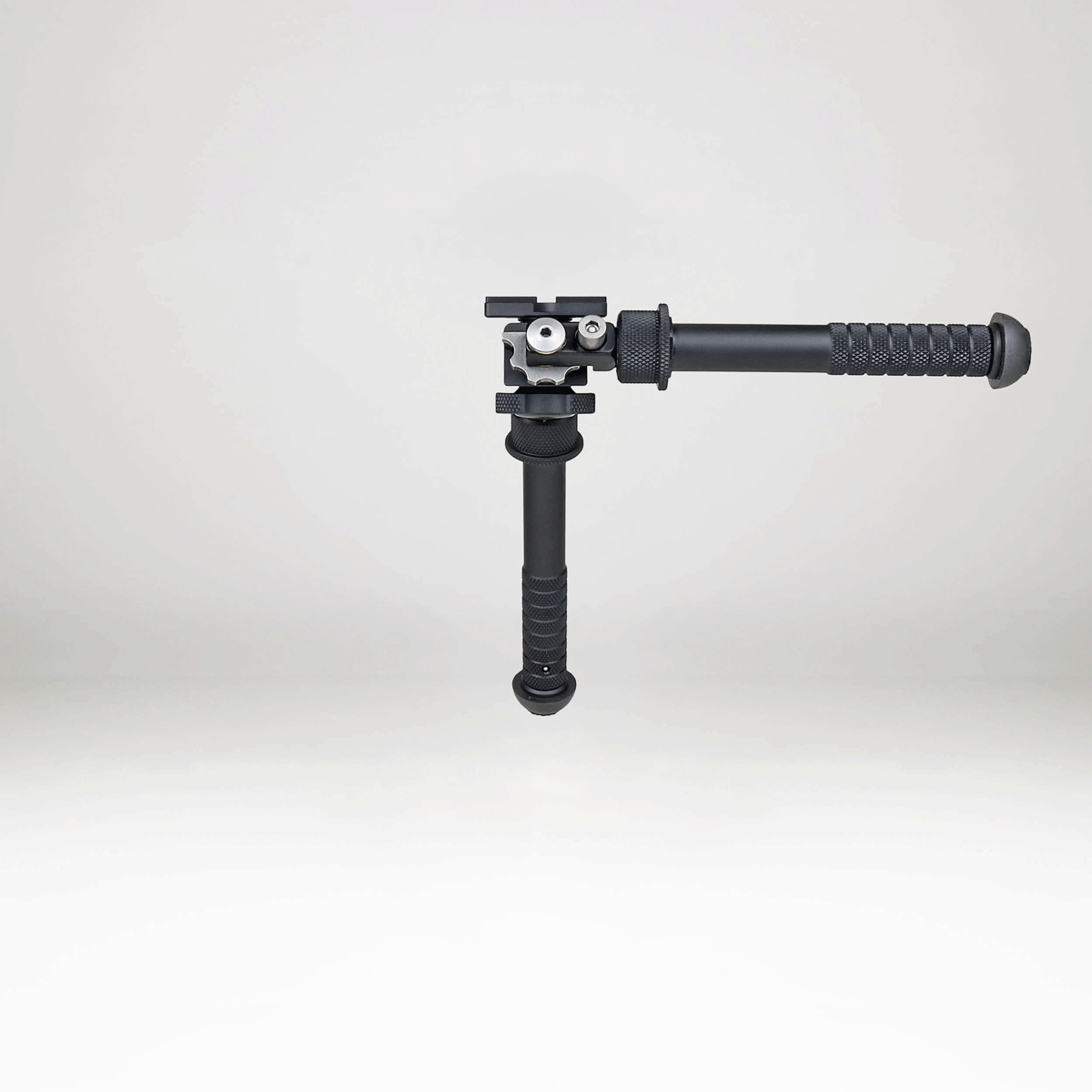

• 5 leg positions: 0, 45, 90, 135 & 180 degrees
• Weight: 10.8 ounces approx.
• Footprint: 8–11″

Compatible Clamps We Offer:

• American Defense MFG ADM-170-S Picatinny Mount
• American Defense MFG QD ARCA Mount
• Area 419 ARCALOCK Clamp
• Area 419 ARCALOCK QD Clamp
• Area 419 ARCALOCK Dual-Clamp with Picatinny
• Arisaka Picatinny Rail Slider
• Really Right Stuff BTC-Pro Dual Arca/Pic Clamp

MORE INFORMATION, TUTORIAL & ACCESSORIES

• NC: No Clamp – Atlas^® V8 Series Bipod Video Tutorial
• UHMW components used for smooth tracking
• Preload on Pan and Cant can be tightened using the knurled knob
• No Clamp interface requires 17S size mount or adapter with matching two hole pattern of 1.100” with 10/32 threads
• Recommended torque specification for installation of any mount/adapter: up to 30 inch pounds
• Independent, intentional and non-orientated leg positioning allows either hand to move leg into any of the five leg positions
• Solid leg positions allows shooter to load the bipod at the 45 and 90 degree positions.
• Non-orientated leg length adjustment done by either hand: Outer leg slides on the Inner leg locating on any of five positions ¾” apart
• Hold What You Move Technology^®
• Includes our Standard Rubber Feet durable and suitable for many surfaces
• Optional Leg Extensions  and Adjustable Leg Extensions to increase height
• Optional quick-change feet: Ski Feet and Raider Cleat Feet easily swapped in the field with the press of a stainless steel plunger
• Optional mounting systems available for Accuracy International and Sako rifles
