Description

The BT10 is comprised of 6061-T6 aluminum that is Mil-Spec Type III hard coat anodized with heat treated stainless steel components. Available in black only.

• Height Range: 4.8 – 9.1″ (6.3” at 90°)
• Preloaded Pan: 30 degrees
• Preloaded Cant: 30 degrees
• Position Button 0.36″ diameter

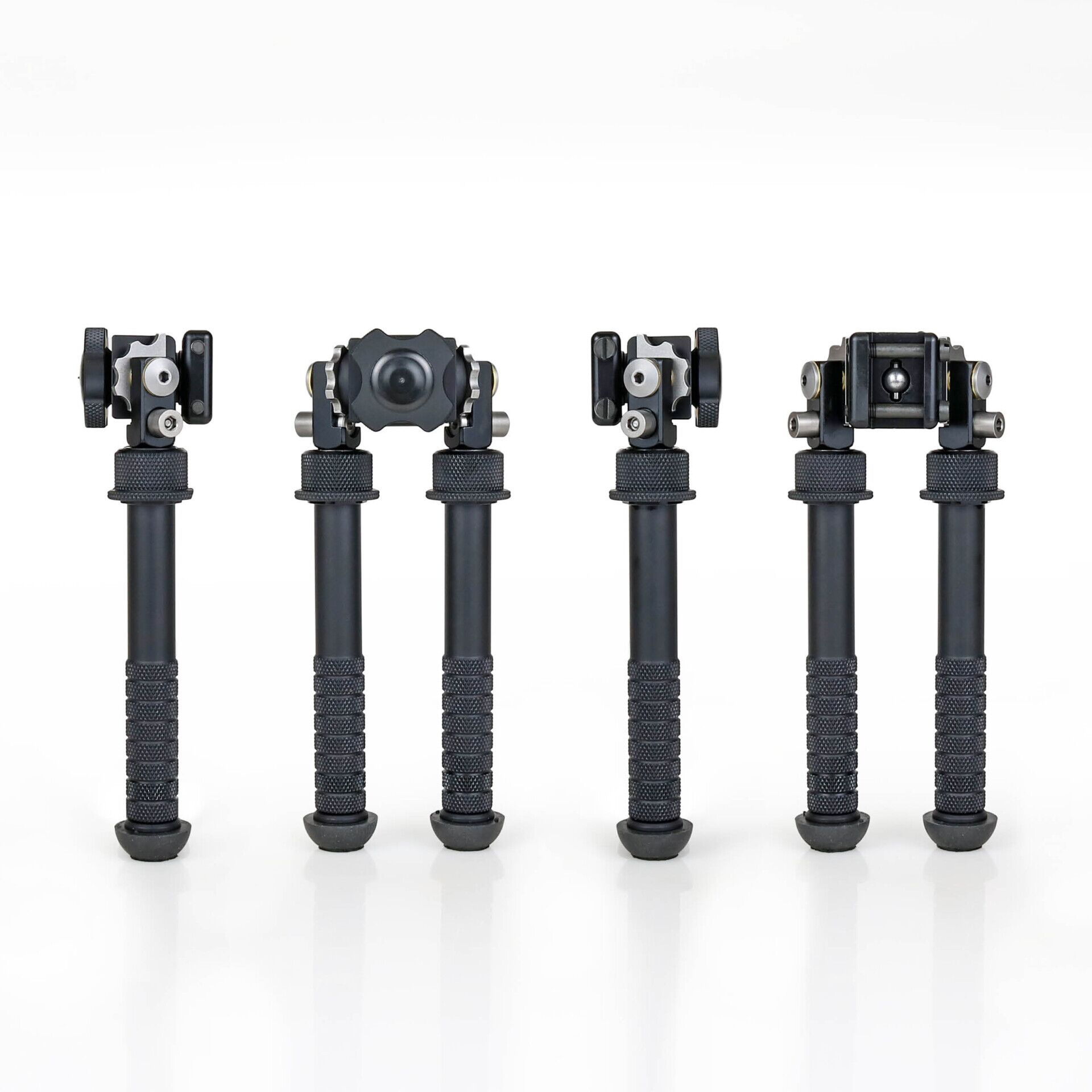

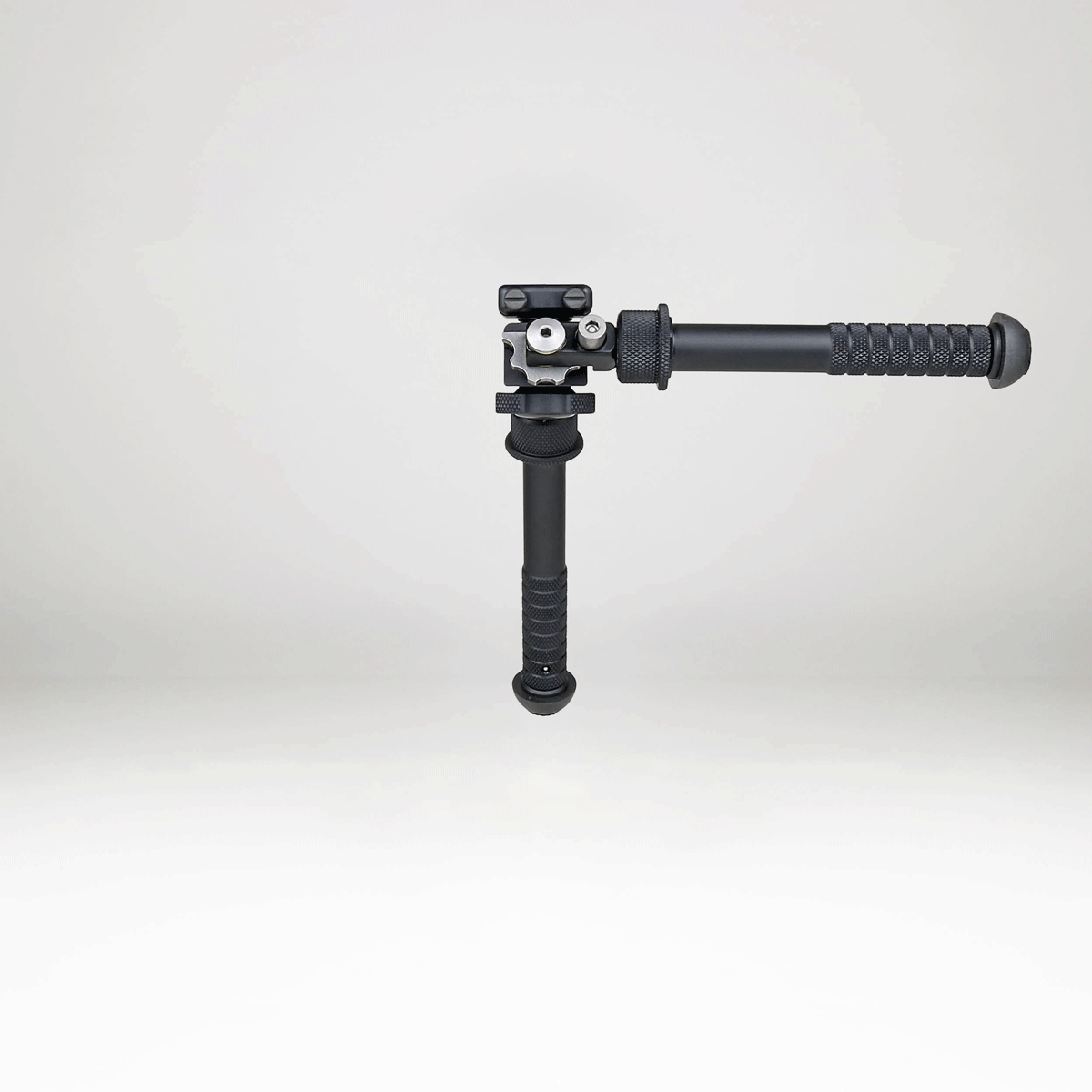

• 5 leg positions: 0, 45, 90, 135 & 180 degrees
• Weight: 11.0 ounces approx.
• Footprint: 8–11″

MORE INFORMATION, TUTORIAL & ACCESSORIES

• Atlas^® V8 Series Bipod Video Tutorial
• UHMW components used for smooth tracking
• Preload on Pan and Cant can be tightened using the knurled knob
• Picatinny Rail Mount interface by two 10-32 x 1.25″ Clamp Bolt – Flat Head Fasteners and based clamp; optional 10-32 x 1.25″ Socket Cap Screws available separately
• Recommended torque specification for installation: up to 20 inch pounds
• Independent, intentional and non-orientated leg positioning allows either hand to move leg into any of the five leg positions
• Solid leg positions allows shooter to load the bipod at the 45 and 90 degree positions.
• Non-orientated leg length adjustment done by either hand: Outer leg slides on the Inner leg locating on any of five positions ¾” apart
• Hold What You Move Technology^®
• Includes our Standard Rubber Feet durable and suitable for many surfaces
• Optional Leg Extensions  and Adjustable Leg Extensions to increase height
• Optional quick-change Ski Feet and Raider Cleat Feet easily swapped in the field with the press of a stainless steel plunger
• Optional mounting systems available for Accuracy International and Sako rifles
